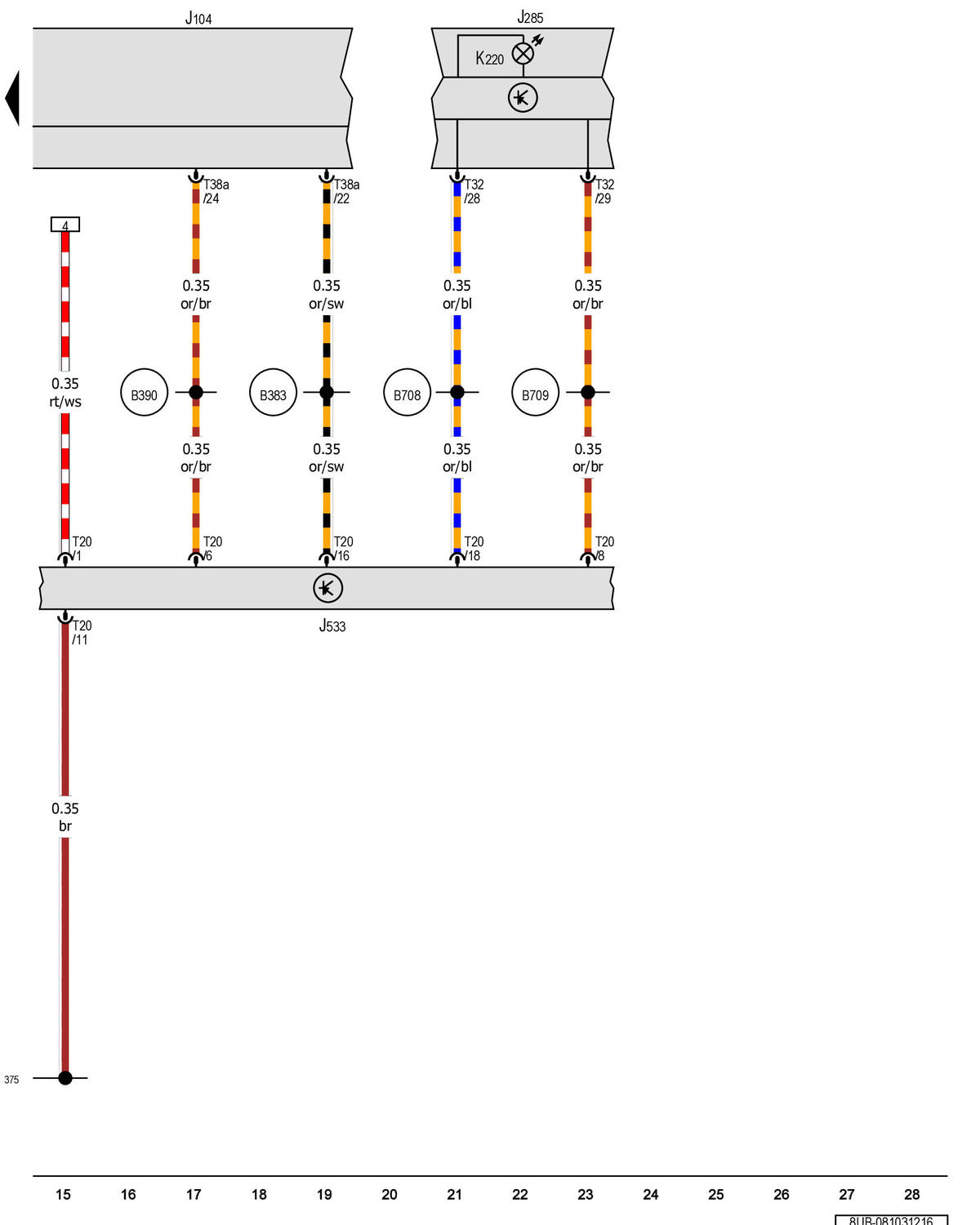

Abs Control Module, Instrument Cluster Control Module, Data Bus On Board Diagnostic Interface, Tire Pressure Monitoring Display Indicator Lamp
J104 ABS control module
J285 Instrument cluster control module
J533 Data bus on board diagnostic interface
K220 Tire pressure monitoring display indicator lamp
T20 20-pin connector
T32 32-pin connector
T38a 38-pin connector
(375) Ground connection 10 (in main wiring harness)
(B383) Powertrain CAN bus high connection 1 (in main wiring harness)
(B390) Powertrain CAN bus low connection 1 (in main wiring harness)
(B708) Instrument cluster CAN bus high connection 1 (in main wiring harness)
(B709) Instrument cluster CAN bus low connection 1 (in main wiring harness)
