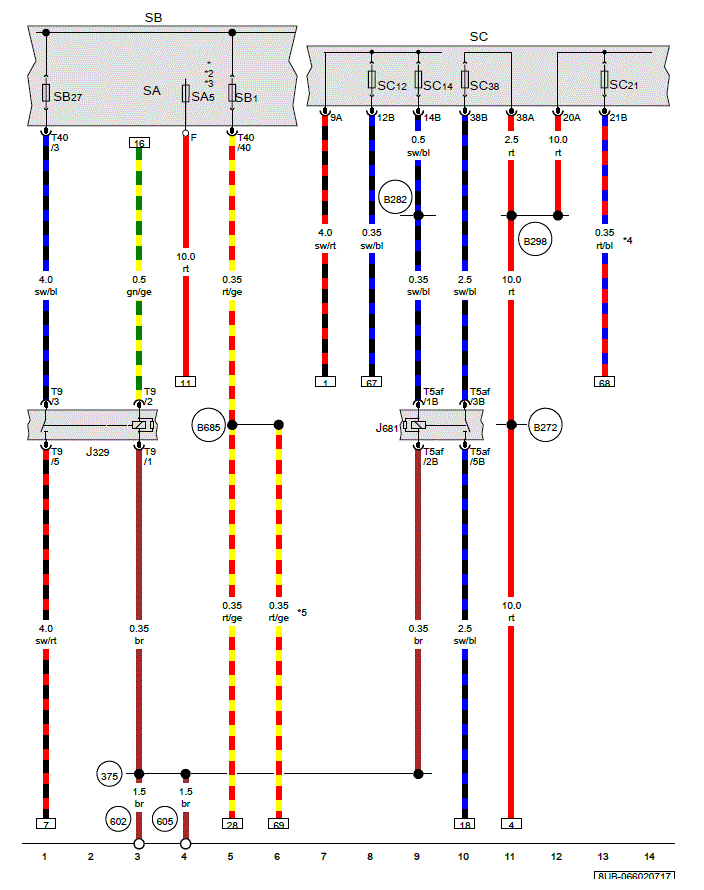

Terminal 15 Power Supply Relay, Terminal 15 Power Supply Relay 2
J329 Terminal 15 power supply relay
J681 Terminal 15 power supply relay 2
SA Fuse Panel A
SB Fuse Panel B
SB1 Fuse 1 (on fuse panel B)
SA5 Fuse 5 (on fuse panel A)
SC Fuse Panel C
SC12 Fuse 12 (on fuse panel C)
SC14 Fuse 14 (on fuse panel C)
SC21 Fuse 21 (on fuse panel C)
SB27 Fuse 27 (on fuse panel B)
SC38 Fuse 38 (on fuse panel C)
T5af 5-pin connector, White
T9 9-pin connector, Black
T40 40-pin connector, Black
(375) Ground connection 10 (in main wiring harness)
(602) Ground connection in left front footwell
(605) Ground connection on upper steering column
(B272) Positive connection (30) (in main wiring harness)
(B282) Positive connection 6 (15a) (in main wiring harness)
(B298) Positive connection 2 (30) (in main wiring harness)
(B685) Positive connection 25 (30a) (in main wiring harness)
* Only for vehicles with a battery in the engine compartment
*2 Only for vehicles with a battery in the luggage compartment
*3 Refer to applicable wiring diagram
