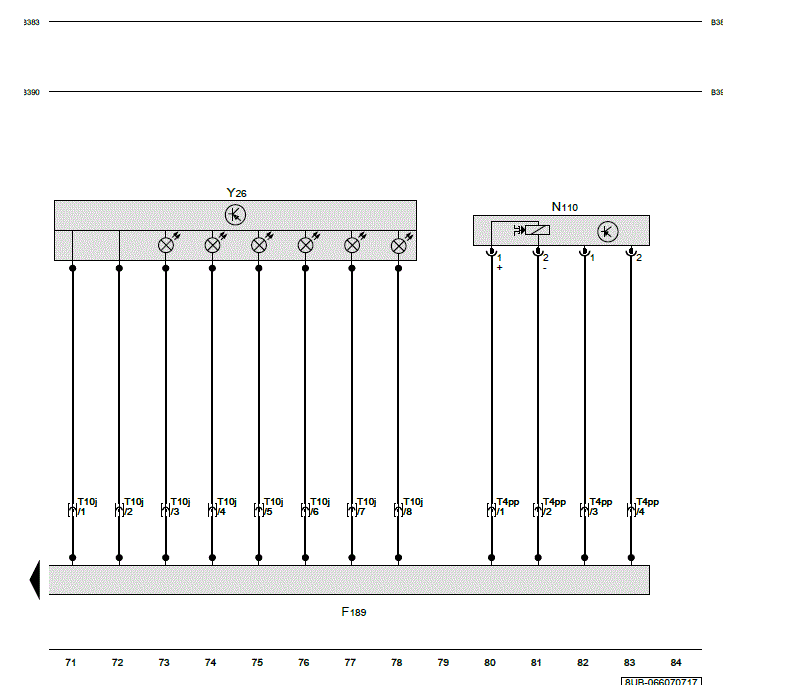

TIPTRONIC Switch, Shift Lock Solenoid, Selector Lever Transmission Range Position Display Unit

Courtesy of AUDI OF AMERICA, LLC

F189  tiptronic switch

N110  Shift lock solenoid

T4pp  4-pin connector

T10j  10-pin connector

Y26  Selector lever transmission range position display unit

(B383) Powertrain CAN bus high connection 1 (in main wiring harness)

(B390) Powertrain CAN bus low connection 1 (in main wiring harness)
