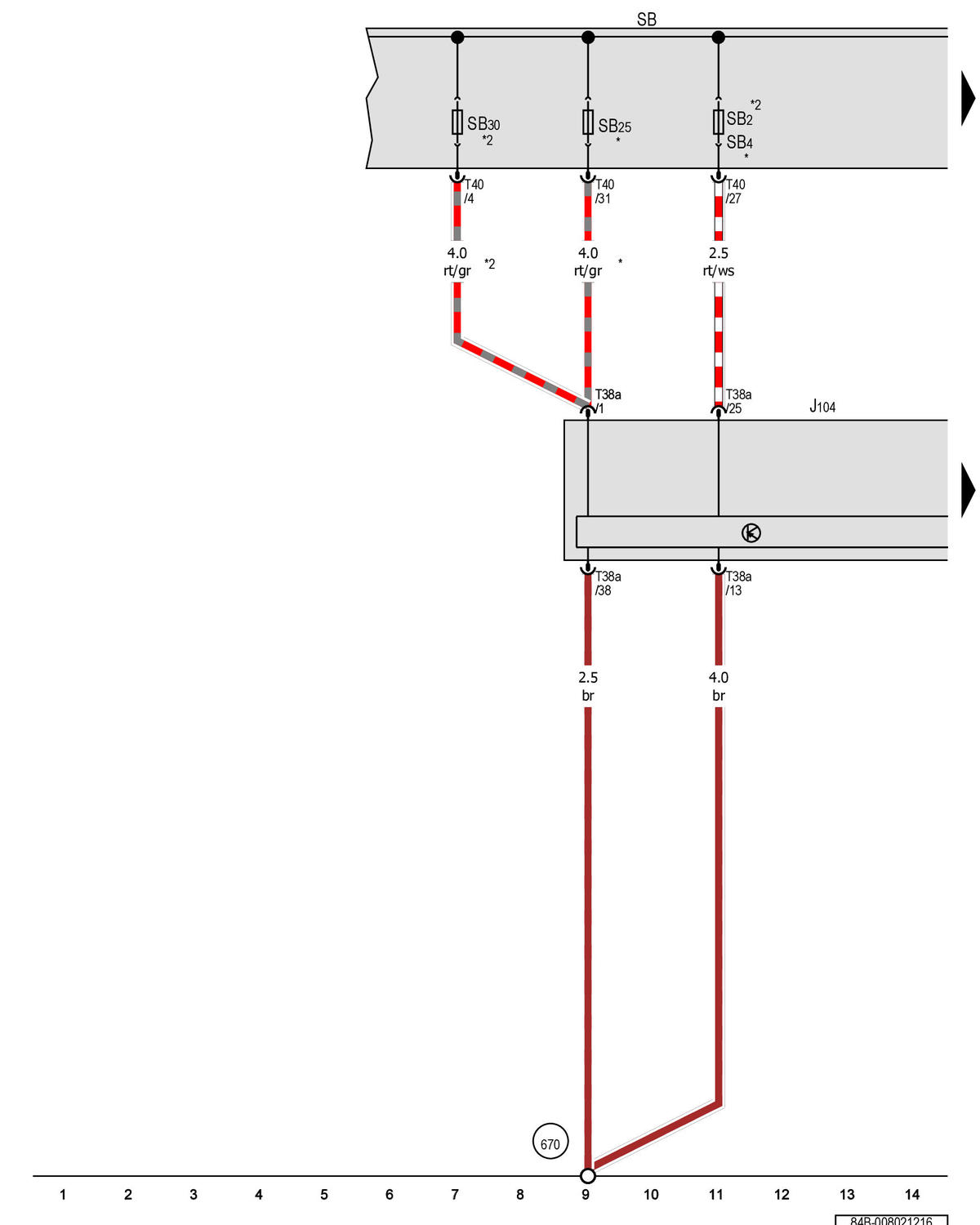

Abs Control Module, Fuse Panel B

Courtesy of AUDI OF AMERICA, LLC

J104  ABS control module

SB  Fuse panel B

SB2  Fuse 2 (on fuse panel B)

SB4  Fuse 4 (on fuse panel B)

SB25  Fuse 25 (on fuse panel B)

SB30  Fuse 30 (on fuse panel B)

T38a  38-pin connector

T40  40-pin connector

(670) Ground connection 2 on left A-pillar

*  through October 2012

*2  from November 2012
