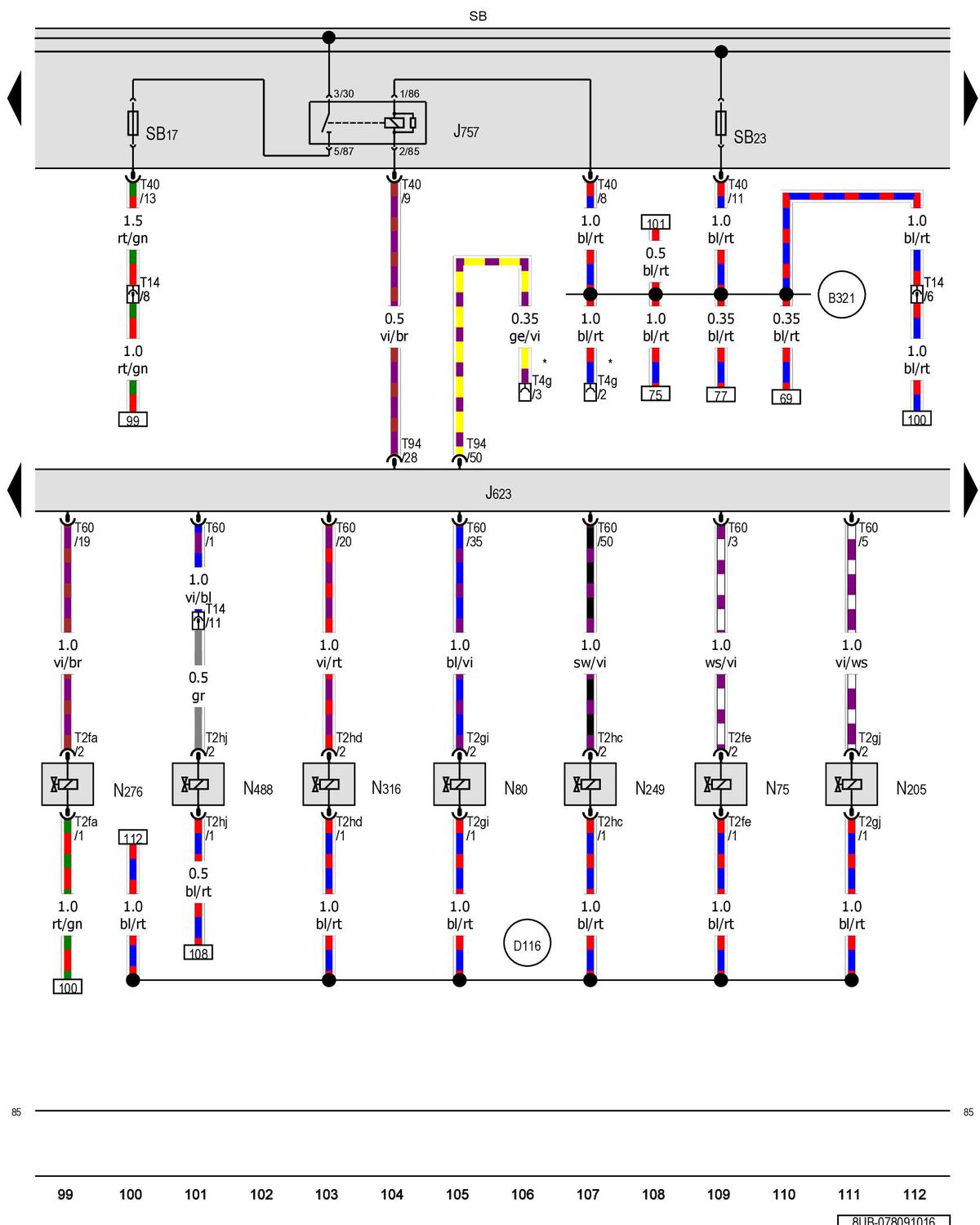

Engine Control Module, Engine Component Power Supply Relay, WASTEGATE Bypass Regulator Valve, EVAP Canister Purge Regulator Valve 1, Camshaft Adjustment Valve 1, Turbocharger RECIRCULATION Valve, Fuel Pressure Regulator Valve, Intake Manifold Runner Control Valve

J623  Engine control module

J757  Engine component power supply relay

N75  Wastegate bypass regulator valve

N80  EVAP canister purge regulator valve 1

N205  Camshaft adjustment valve 1

N249  Turbocharger recirculation valve

N276  Fuel pressure regulator valve

N316  Intake manifold runner control valve

N488  Transmission coolant valve

SB  Fuse panel B

SB17  Fuse 17 (on fuse panel B)

SB23  Fuse 23 (on fuse panel B)

T2fa  2-pin connector

T2fe  2-pin connector

T2gi  2-pin connector

T2gj  2-pin connector

T2hc  2-pin connector

T2hd  2-pin connector

T2hj  2-pin connector

T4g  4-pin connector

T14  14-pin connector, near the left front longitudinal member

T40  40-pin connector, black

T60  60-pin connector, black

T94  94-pin connector, black

(85) Ground connection 1 (in engine compartment wiring harness)

(B321) Positive connection 7 (30a) (in main wiring harness)

(D116) Connection 14 (in engine compartment wiring harness)

*  Radiator fan connection
