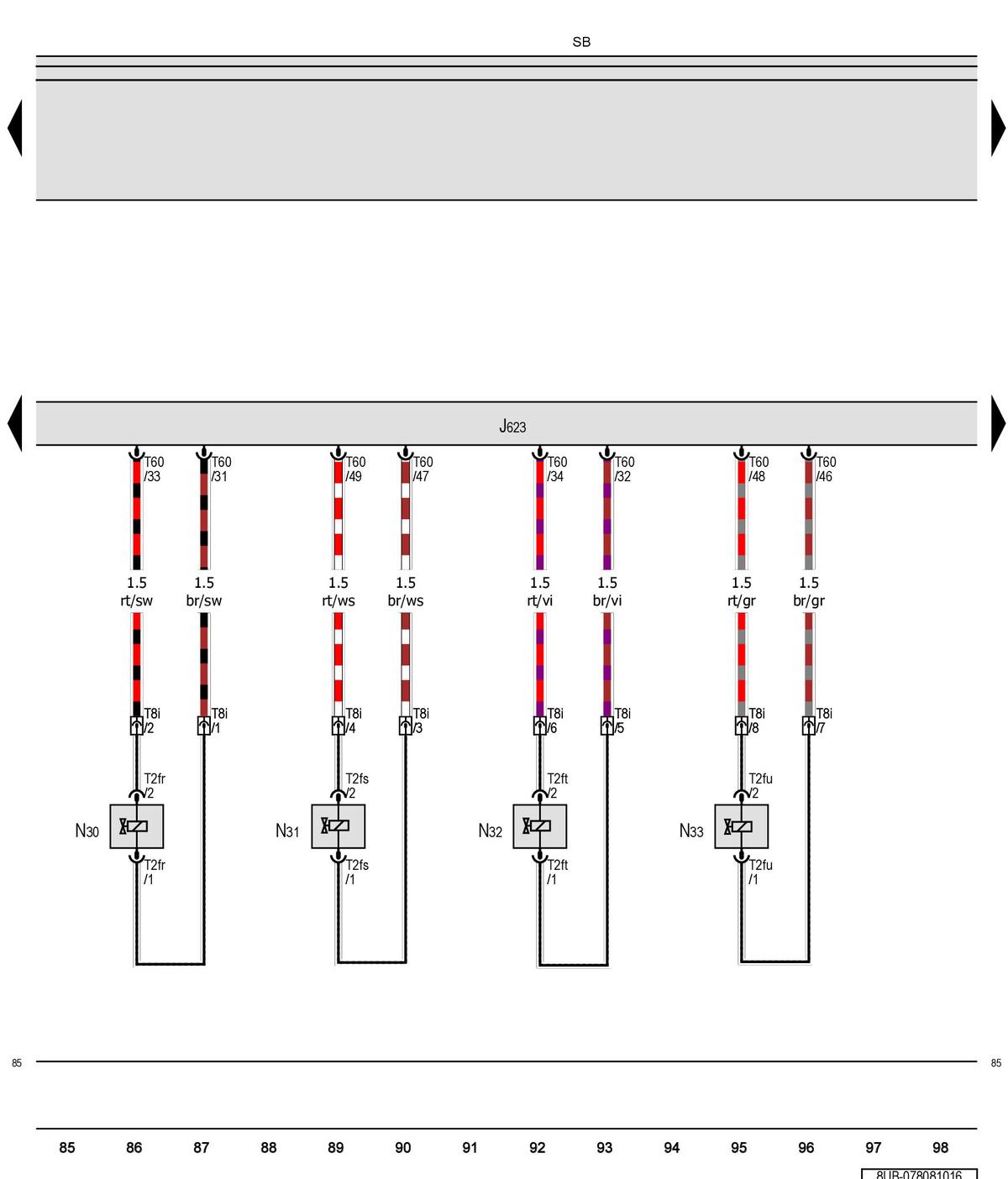

Engine Control Module, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector

J623  Engine control module

N30  Cylinder 1 fuel injector

N31  Cylinder 2 fuel injector

N32  Cylinder 3 fuel injector

N33  Cylinder 4 fuel injector

SB  Fuse panel B

T2fr  2-pin connector

T2fs  2-pin connector

T2ft  2-pin connector

T2fu  2-pin connector

T8i  8-pin connector

T60  60-pin connector, black

(85) Ground connection 1 (in engine compartment wiring harness)
