Camshaft Position Sensors -G163 - / - G301-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2015 Audi S7, 2015 Audi RS 7, 2014 Audi S7, 2014 Audi RS 7, and 2013 Audi S7. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .
WARNING:
Fire hazards and risk of damage for a faulty engine cover.
- The engine cover must be always be installed before the hood is closed.
- The engine may neither be started nor driven without an engine cover.
Camshaft Position Sensor 3 -G300- :
-- Open the clamps -1 and 4- and remove the coolant hoses.
-- Free up the coolant hose -arrow-.
-- Disconnect the connector -2-.
-- Remove the bolt -3-.
-- Remove the coolant reservoir upward from the mount and move it towards the front.

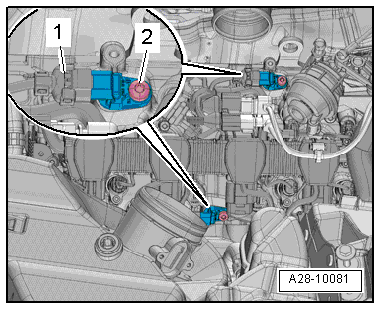

Continuation for Both Camshaft Position Sensors:
-- Disconnect the connector -1-.
-- Remove the bolt -2- and the camshaft position sensor.
