Seat Pan Cover And Cushion, Separating, Standard Seat: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

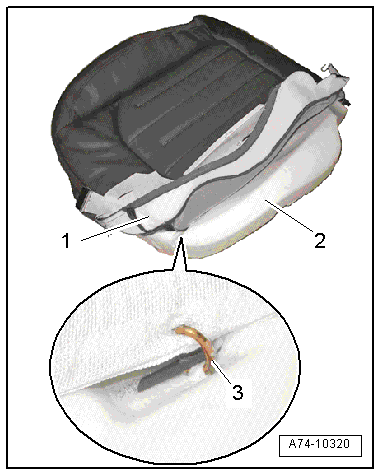

Fig 1: Identifying Upholstery Clip
GWWA74-10320Courtesy of AUDI OF AMERICA, LLC

-- Remove seat cover with seat cushion for seat pan. Refer to LOWER SEAT FRAME COVER AND CUSHION, REMOVING AND INSTALLING, STANDARD SEAT .

-- Remove seat cover -1- in the rear and side from the seat cushion -2- and cut upholstery clips -3- using pliers.
