Hydraulic Unit Bracket, Removing And Installing, Hybrid Vehicles: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Fasten bracket -1- with the bolt -2- and nut -3- to 10 Nm.

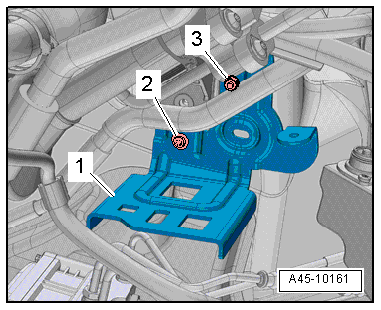

Fig 1: Identifying Bracket, Screw And Nut

Courtesy of AUDI OF AMERICA, LLC
