Wind Deflector, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Open the sunroof all the way.

-- Push the front wind deflector down and remove the wind deflector arms from the bracket toward the center of the vehicle.

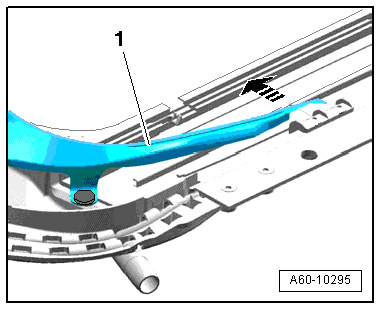

-- Remove the wind deflector -1- toward the rear and out of the sunroof opening.

Fig 1: Remove Wind Deflector And Mount Toward Rear And Out Of Sunroof Opening

Courtesy of AUDI OF AMERICA, LLC

-- Install in reverse sequence.

Wind Deflector Spring

-- Install the spring -3- into the wind deflector mount -1-.

Fig 2: Laying Spring Around Retaining Pins On Wind Deflector

Courtesy of AUDI OF AMERICA, LLC

-- Install the spring into the outer groove in the wind deflector -2-.
