Sunroof Panel, Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the bellow laterally from the panel and the frame.

-- Remove the screws -arrows- on both side and remove the panel.

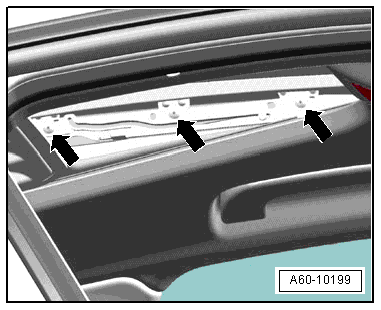

Fig 1: Remove Screws On Both Side And Remove The Panel
GWWA60-10199Courtesy of AUDI OF AMERICA, LLC
