Wheel Bearing Unit, Fwd, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing Dust Cap (1 Of 2)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear wheel, refer to WHEELS AND TIRES .

-- Loosen the cap by lightly tapping on the Puller - Grease Cap VW637/2 -1-.

-- Pry the cap with the Puller - Grease Cap VW637/2 -1-.

Fig 2: Removing Dust Cap (2 Of 2)

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the wheel bearing unit bolt.

-- Remove the brake caliper and brake rotor from the wheel bearing housing and (refer to [[Editorial:Find destination]] ), guide them past the suspension and secure them to the body.

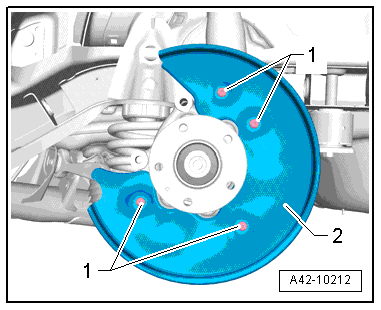

Fig 3: Bolts -1- And Cover Plate -2-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Make sure the weight of the removed brake caliper cannot crush or damage the brake hose or brake line.
Do not press the brake pedal whenever the brake caliper is removed.

-- Remove the bolts -1- from the brake shield -2-.

-- Reach behind the front seal -arrow-. Remove the wheel bearing unit (not illustrated) over the front seal -arrow-.

Fig 4: Front Seal

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Do not pull the wheel bearing off by the outer race (wheel hub).

NOTE:

If the wheel bearing unit can be removed from the wheel bearing housing by hand, the wheel bearing unit is OK and can be reinstalled.

Fig 5: Avoid Contaminating With Dirt And Damaging Seal When Setting Down/Storing

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Avoid contaminating with dirt and damaging the seal when setting down/storing.

The wheel bearing -1- must always face up.
Always set the wheel bearing unit down on the wheel hub -2-.
