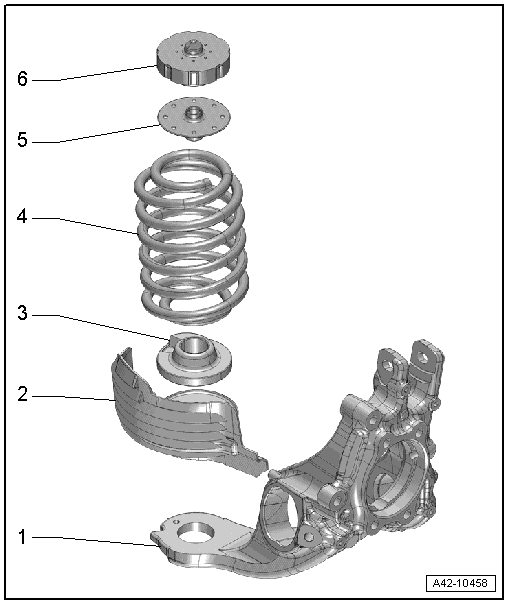

Overview - Suspension Strut, Shock Absorber And Spring, Coil Spring
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel Bearing Housing
- Stone Chip Protection
- Lower Spring Plate
- Note the installed position, refer to Fig 2.
- Coil Spring
- Note the installed position, refer to Fig 3.
- Spacer Piece
- Not installed on all vehicles. For the correct allocation .
- Upper Spring Plate
- Vehicles with an upper eccentric spring plate, refer to Fig 4; for the correct allocation .

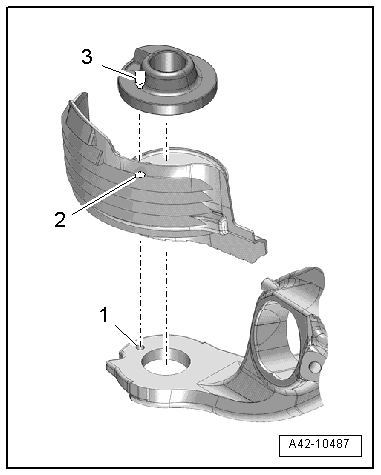

- The centering pin -3- on the lower spring plate must fit into the hole -2- in the stone chip protection and into the hole -1- in the wheel bearing housing.

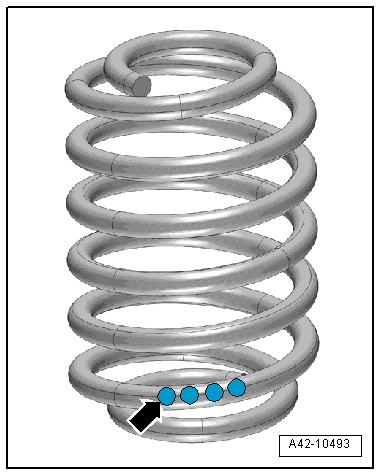

- Lower color marking -arrow-.
- Turn the end of the spring all the way to the lower spring plate.
- The -arrow- indicates direction of travel.
- The centering pin -1- fit into the longitudinal member -2-.
