Overview - Suspension Strut, Shock Absorber And Spring, Air Spring

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

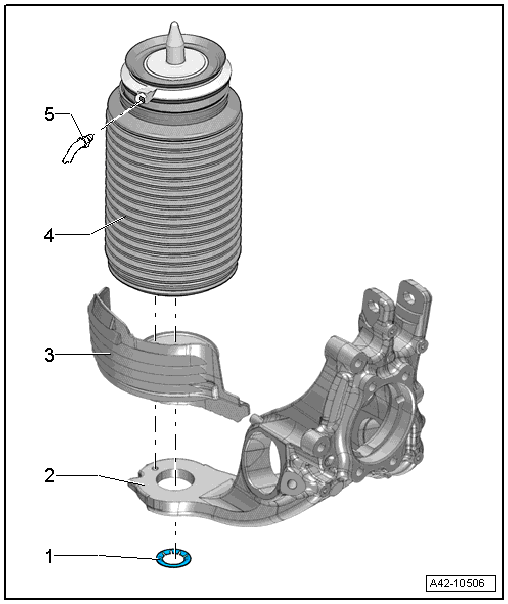

Fig 1: Suspension Strut, Shock Absorber And Spring, Air Spring

Courtesy of AUDI OF AMERICA, LLC

Spring Washer
Wheel Bearing Housing
Stone Chip Protection
Air Spring
- Removing and installing, refer to SPRING, REMOVING AND INSTALLING, AIR SPRING .
- Note installed position, refer to Fig 2.
Air line
- Tightening specification for the connector -item 3- OVERVIEW - AIR LINES => List Item:Rear Air Spring Connecting Piece

Fig 2: Air Spring Installed Position

Courtesy of AUDI OF AMERICA, LLC

The positioning pin -3- on the air spring must fit into the hole -5- in the stone chip protection and into the hole -4- in the wheel bearing housing.
The hooks -2- must lock onto the lower wheel bearing housing.
The spring washer -1- must be pushed on parallel up to the base of the air spring.
The positioning pin -6- on the air spring must be installed correctly inside the body.
