SUBFRAME Front Bearing, Replacing, Vehicles With AWD: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If a bonded rubber bushing is faulty, then the bonded rubber bushing on the opposite side must also be replaced. For the correct allocation .

Check the other bushings before replacing a faulty bonded rubber bushing.

If cracks, oil leaks or other damage is visible, this bonded rubber busing must be replaced too.

There are different versions of the bonded rubber bushing. For the correct allocation .

-- Remove the rear wheels, refer to WHEELS AND TIRES .

Vehicles with Steel Suspension

-- Remove the coil springs, refer to Removing .

Vehicles with Air Suspension

-- Bleed the rear axle air spring, refer to SYSTEM, VENTING OR FILLING .

Continuation for All Vehicles

-- Remove the diagonal braces, if equipped, refer to Removing .

NOTE:

To replace the rubber bonded bushing, lower the front of the subframe. It is not necessary to remove the subframe.

Do not lower the subframe more than 4 cm.

Identify mounting location to subframe before removing the bonded rubber bushing.

-- Secure the vehicle to the hoist lifting arms -arrow B- with the Tensioning Strap T10038 over the striker pin -arrow A-.

Fig 1: Tensioning Strap T10038

Courtesy of AUDI OF AMERICA, LLC

-- Place a piece of foam rubber -1- between the sill panel and the Tensioning Strap T10038 and then tension the Tensioning Strap T10038

NOTE:

Be careful not to scratch the sill panel.

CAUTION:

The vehicle could fall off the hoist if it is not secured.

-- Remove the underbody covers -1 and 2-, refer to Underbody Trim Panel .

Fig 2: Stone Deflectors

Courtesy of AUDI OF AMERICA, LLC

-- Place the Engine and Gearbox Jack VAS6931 under the subframe -1-.

Fig 3: Placing A Block Of Wood Under Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Place a wood block -2- under the subframe -1-.

-- Remove the left and right bolts -arrow-.

Fig 4: Left And Right Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install the Subframe Lowering Tool T40253 with the thrust bearing from the Subframe Bushing Tool Kit 3301 and the Subframe Lowering Tool - Nut T40253/1, as illustrated, on the opposite side of the bonded rubber bushing being replaced approximately 1.5 cm into the vehicle body.

Fig 5: Bushing Tool & Lowering Tool

Courtesy of AUDI OF AMERICA, LLC

Subframe Bushing Tool Kit 3301
Subframe Lowering Tool - Nut T40253/1
Subframe Lowering Tool T40253

NOTE:

Turn the Subframe Lowering Tool - Nut T40253/1 on the Subframe Lowering Tool T40253 until dimension -a- 4 cm is reached.

-- Lower the subframe 4 cm only.

Applies to A Hydraulic Bonded Rubber Bushing

Fig 6: Plastic Insert -1-

Courtesy of AUDI OF AMERICA, LLC

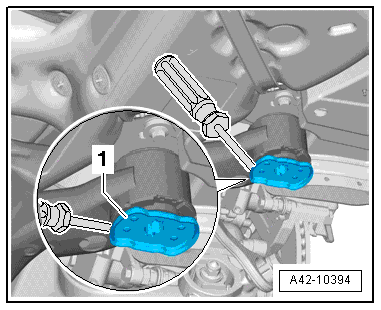

-- Remove the plastic stop -1- upward in direction of -arrow- as illustrated.

Applies to All

Fig 7: Stop Plate

Courtesy of AUDI OF AMERICA, LLC

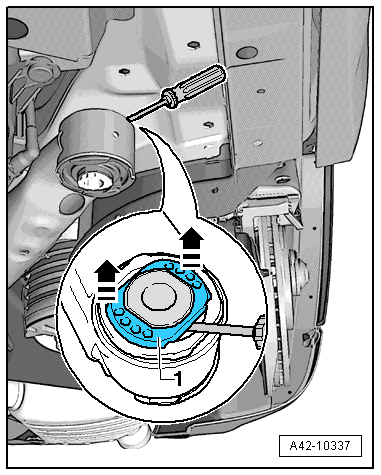

-- Pry the stop plate -1- off the bonded rubber bushing alternating from side to side.

-- Mark the installation position of the bonded rubber bushing or the hydraulic bonded rubber bushing on the subframe -arrows- for later installation.

Fig 8: Ends Of Rubber Bead On Bonded Rubber Bushing Must Align With Markings

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, the support -arrow- with the >>small<< interior diameter must be removed from the Hydraulic Press VAS6178 and the Pressure Head T10205/13 for it must be installed.

Fig 9: Support -Arrow- And VAS 6178

Courtesy of AUDI OF AMERICA, LLC

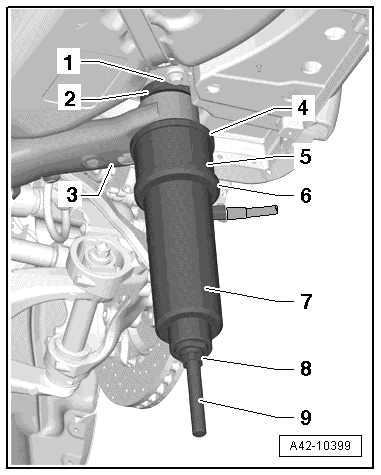

-- Place the tools on the front bonded rubber bushing as shown in the illustration.

Fig 10: Bushing Tool

Courtesy of AUDI OF AMERICA, LLC

Hydraulic Press - Rear Subframe Bushing Tool Kit-Nut T10263/5
Subframe Bushing Assembly Tool - Thrust Piece T40185/5. The opening faces the rubber bonded bushing.
Subframe
Subframe Bushing Assembly Tool - Support Ring T40185/6. The conical side must face upward and the ribs must fit into the openings in the rubber bonded bushing.
Rear Bushing Tool - Tube T40033/3
Bearing Installer - Wheel Hub/Bearing Kit - 4T10205/4
Hydraulic Press VAS6178
Hydraulic Press - Rear Subframe Bushing Tool Kit-Nut T10263/5
Hydraulic Press - Rear Subframe Bushing Tool Kit-Spindle T10263/4 The spindle pins face downward.

WARNING:

Hold the Hydraulic Press VAS6178 firmly while pressing out.
Bonded rubber bushing loosens >>abruptly<<. There is the risk of injuries by tools and bonded rubber bushing coming off!
