Overview - SUBFRAME, Vehicles With Fwd

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

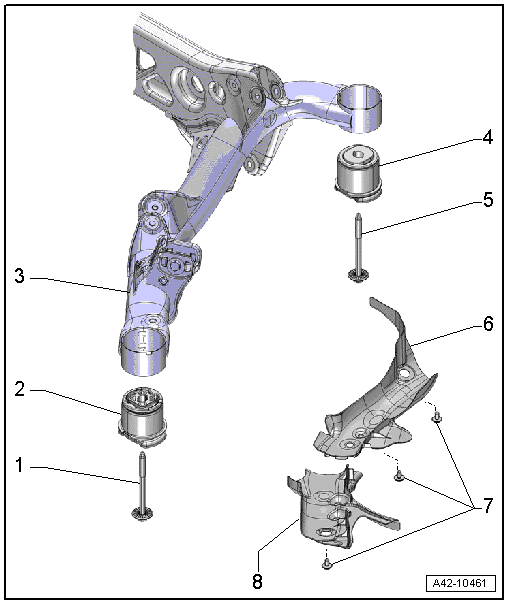

Fig 1: Overview - Subframe, Vehicles With FWD

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 115 Nm +90° turn
- Always replace if removed
Front Bonded Rubber Bushing
- for the subframe mounting
- There are different versions, refer to Fig 2. For the correct allocation .
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Replacing, refer to SUBFRAME FRONT BEARING, REPLACING, VEHICLES WITH FWD .
- Replace on both sides.
Subframe
- Subframe with attachments, removing and installing, refer to SUBFRAME, REMOVING AND INSTALLING, FWD VEHICLES .
- Subframe, securing, refer to SUBFRAME, SECURING, FWD .
  NOTE:
  An AWD subframe is installed for hybrid vehicles. For the correct allocation . Performing repairs on the subframe is not affected.
Rear Bonded Rubber Bushing
- For the subframe mounting
- There are different versions, refer to Fig 2. For the correct allocation .
- Oil on the hydraulic bonded rubber bushing is a sign of wear.
- Replacing, refer to SUBFRAME REAR BEARING, REPLACING, VEHICLES WITH FWD .
- Replace on both sides.
Bolt
- 115 Nm +90° turn
- Always replace if removed
Rear Stone Chip Protection
- Depending on the date of manufacture
Clip
- Depending on the date of manufacture
Front Stone Chip Protection
- Depending on the date of manufacture

Fig 2: Front and Rear Bonded Rubber Bushings

Courtesy of AUDI OF AMERICA, LLC

A - Hydraulic bonded rubber bushing

B - Conventional bonded rubber bushing

Fig 3: Diagonal Brace

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Replace the bolts that were tightened with an additional turn.

-- Tighten the bolts -1 through 4- to 50 Nm +90° turn.
