Undamaged Side Window, Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

In window separation area, protect side panel and roof against paint damage with adhesive tape.
Insert a protective film between the cutting cable and the C/D-pillar trim panels on the inside of the window.

-- Remove the door seal in the >>C-pillar<< and side window area.

-- The >>B-pillar<< trim is removed. Refer to B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the roof trim molding. Refer to ROOF TRIM MOLDING, REMOVING AND INSTALLING .

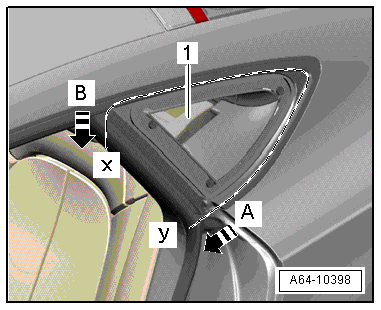

Fig 1: Removing Undamaged Side Window

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Roof trim molding must not be bent.

-- Route the cutting wire around the side window as shown in the graphic.

-- Secure ends X and Y in two pull grips from Bonded Window Tool Kit VAG 1351.

-- Pull cutting wire forward in direction of arrow -A- using light sawing motions and cut through lower adhesive sealing material at side panel and at roof frame.

-- In this way, first the securing pin on the rear of the window and then the adhesive bead are cut through.

-- Then pull cutting cord through in direction of arrow -B- downward through adhesive sealing material.

-- Remove window from window opening.
