Overview - Rear Window

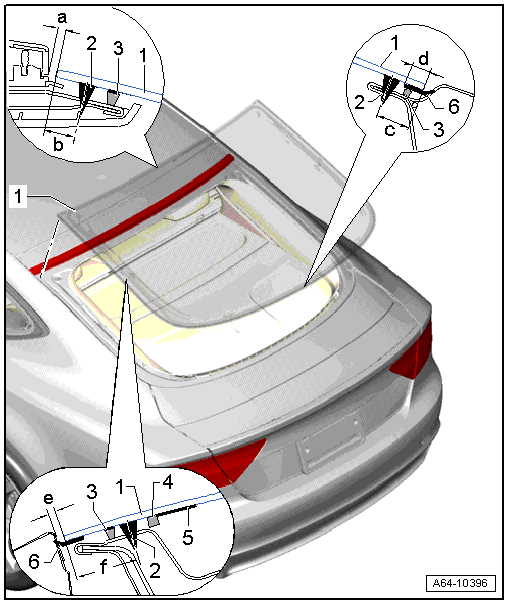

Fig 1: Overview Of Rear Window

Courtesy of AUDI OF AMERICA, LLC

1. Rear Window
   • Distance -a- to the brake lamp = 3 mm
   • Distance -e- to the side wall frame = 3 mm.
   • Before removing, disconnect all electrical connectors and secure the terminals to the middle of the window on the inside using adhesive tape.
2. Adhesive Bead
   • Bead width = 8 mm ^{± 2 mm}
   • Bead height = 12 mm ^{+ 2 mm}
   • Distances measured from the window edge to the center of the bead of adhesive:
     • Dimension -b- = 14 mm
     • Dimension -c- = 17 mm
     • Dimension -d- = 10 mm
     • Dimension -f- = 24 mm
3. Spacer
   • Included in the delivery of the rear window
4. Adhesive Stop Profile
   • On the side, the adhesive end profile directly next to the rail for the window defroster to the edge of the glass
5. Rail
   • For rear window defogger
   • Must not come in contact with the window adhesive
6. Gap Cover
   • Can be replaced.

     -- Remove all around the gap cover.

     -- Remove any remaining adhesive with a glass scraper.

     -- Clean the adhesive surface using Cleaning Solution D 009 401 04.

     -- Apply Glass/Paint Primer D 009 200 02 to the adhesive surface and let it dry for 10 minutes.

     -- Peel off the protective film from the gap cover in steps and press it in distance -d- from the edge of the glass.

     -- Press the gap cover using Roller 3356.

-- Center window along sides.

-- Note the distance to the brake lamp = 3 mm.

-- Observe the minimum curing time. Refer to MINIMUM CURING TIME FOR BONDED WINDOWS .
