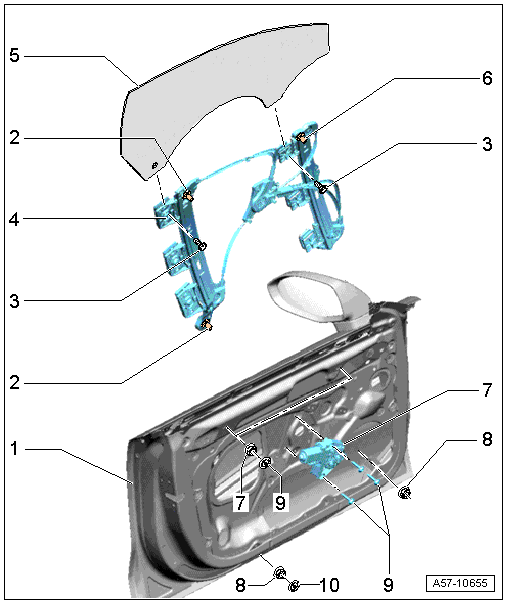

Overview - Front Door Window
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Door
- Screw
- Tightening specification. Refer to OVERVIEW - WINDOW REGULATOR .
- Screw
- 9 Nm
- Window Regulator
- Adjusting. Refer to FRONT DOOR WINDOW, ADJUSTING .
- Door Window
- Removing and installing. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .
- Threaded Pins
- Window Regulator Motor
- Nut
- Tightening specification. Refer to OVERVIEW - WINDOW REGULATOR .
- Screw
- Tightening specification. Refer to OVERVIEW - WINDOW REGULATOR .
- Cap
