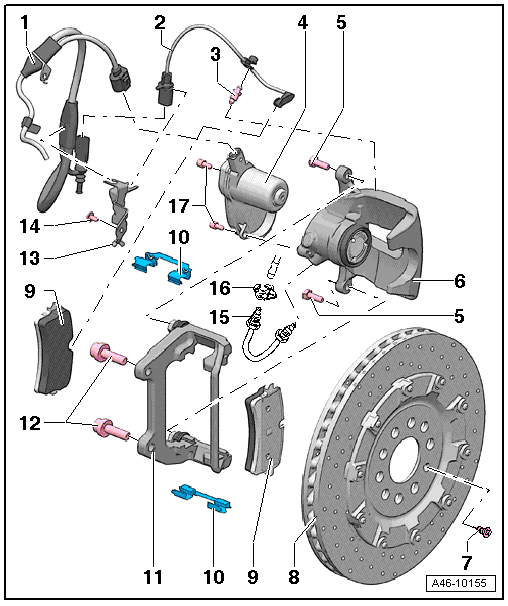

Rear Brakes, Servicing

• Connection for the motor
• Connection for the brake pad wear indicator wire
  NOTE:

  Install in the bracket.

  Make sure the bracket is installed correctly.

• Refer to BRAKE PAD WEAR DISPLAY WIRE, REMOVING AND INSTALLING

• 11 Nm

Refer to Left Parking Brake Motor -V282- /Right Parking Brake Motor -V283-, REMOVING AND INSTALLING

Refer to Electromechanical Parking Brake Control Module -J540-, REMOVING AND INSTALLING

• 35 Nm.
• Always replace
• When loosening and tightening, counter-hold at guide pin

• Do not remove the brake hose when changing the brake pads.
• Refer to BRAKE CALIPER WITH BRAKE CARRIER, REMOVING AND INSTALLING
• Refer to REAR BRAKE CALIPER, REPLACING
• Refer to BRAKE CALIPER, ELECTROMECHANICAL PARKING BRAKE

• 5 Nm

• For the correct wear limit. Refer to REAR BRAKES .
• Always replace on both axles.
• Remove brake caliper before removing
• For brake rotor allocation. Refer to BRAKES, TECHNICAL DATA .
• Refer to BRAKE ROTOR, REMOVING AND INSTALLING
• Refer to REAR BRAKE ROTOR, REPLACING

• Always replace on both axles.
• Refer to REAR BRAKE PADS, REMOVING AND INSTALLING
• Brake pad allocation. Refer to BRAKES, TECHNICAL DATA .
• Check the brake pad thickness. Refer to => 411.
  NOTE: Inner brake pad with brake pad wear display wire

• Always replace when pads are replaced
  NOTE: Make sure it fits correctly in the brake carrier.

• Supplied as an assembled replacement part with sufficient grease on guide pins
• Install the repair kit if the caps or guide pins are damaged. Use supplied grease packet to lubricate guide pins
  NOTE: For brake rotor removal, removing the brake carrier.

• 100 Nm + 90°
• Always replace

• 10 Nm.

• Brake hose in brake caliper 20 Nm.
• Brake hose to brake line 14 Nm.

  Make sure the brake hose is routed correctly. Make sure the brake hose is not blocked, bent or rubbing against the vehicle.

• 12 Nm.
