Overview - Rear Brakes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

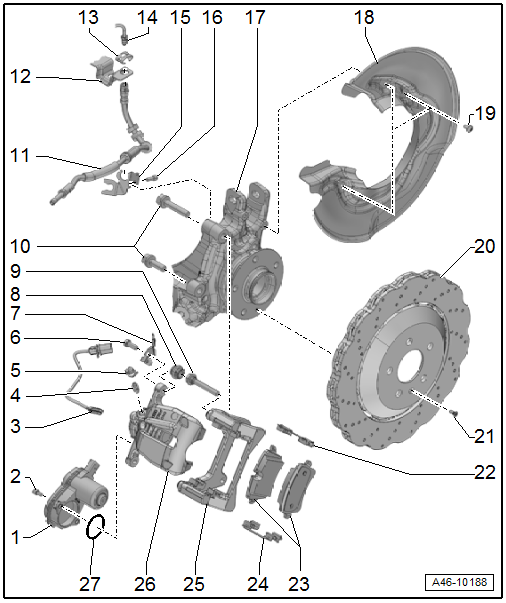

- Electromechanical Parking Brake Motor
- Left Parking Brake Motor -V282-, Right Parking Brake Motor -V283-
- Refer to Left Parking Brake Motor -V282- /Right Parking Brake Motor -V283-, REMOVING AND INSTALLING
- Refer to Electromechanical Parking Brake Control Module -J540-, REMOVING AND INSTALLING
- Screws
- 12 Nm
- Brake Pad Wear Sensor
- Left Rear Brake Pad Wear Sensor -G36- /Right Rear Brake Pad Wear Sensor -G37-
- For inner brake pad
- Replace if damaged.
- Cannot be removed without damaging it
- Refer to BRAKE PAD WEAR SENSOR, REMOVING AND INSTALLING
- Bleed Screw
- 13 Nm
- Protective Cap
- Bolt
- 35 Nm
- Self-locking
- Replace after removing
- When loosening and tightening, counter-hold at guide pin
- Bracket
- For the connector
- Protective Sleeve
- For guide pins
- Install the repair kit if the caps or guide pins are damaged. Use supplied grease packet to lubricate guide pins
- Guide Pin
- Check ease of movement
- Install the repair kit if the caps or guide pins are damaged. Use supplied grease packet to lubricate guide pins
- Bolt
- 100 Nm +90°
- With a washer
- Note the different bolt lengths. The long bolt sits above.
- Replace after removing
- Brake Hose
- Make sure the brake hose is routed correctly. Make sure the brake hose is not blocked, bent or rubbing against the vehicle.
- Replace if damaged.
- Make sure that lugs are properly seated in grooves in bracket.
- Tightening specification, brake hose to brake caliper, 20 Nm
- Bracket
- For brake hose
- Welded onto the body
- Spring
- Replace if damaged.
- Brake Line
- Tightening specification, brake line to brake hose, 14 Nm
- Bracket
- For brake hose and electrical wires
- Bolt
- 9 Nm
- Stub Axle Carrier
- Cover Plate
- Refer to COVER PLATE, REMOVING AND INSTALLING
- Bolt
- 10 Nm
- Brake Rotor
- For the correct wear limit. Refer to REAR BRAKES .
- Always replace on both axles.
- Allocation.
- Refer to REAR BRAKE ROTOR, REMOVING AND INSTALLING
- Bolt
- 10 Nm
- Brake Pad Spring
- Replace when pads are replaced.
- Make sure it fits correctly in the brake carrier.
- Brake Pads
- Check the brake pad thickness. Refer to => 411.
- Always replace on both axles.
- Allocation.
- Refer to REAR BRAKE PADS, REMOVING AND INSTALLING
- Note installation position:
- Identification "BA" = outer brake pad
- Identification "BI" = inner brake pad with brake pad wear indicator mount
- Brake Pad Spring
- Replace when pads are replaced.
- Make sure it fits correctly in the brake carrier.
- Brake Carrier
- Supplied as an assembled replacement part with sufficient grease on guide pins
- Install the repair kit if the caps or guide pins are damaged. Use supplied grease packet to lubricate guide pins
- Brake Caliper
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING
- Refer to BRAKE CALIPER, REPLACING
- Refer to BRAKE CALIPER, ELECTROMECHANICAL PARKING BRAKE
- O-Ring
- Replace after removing
