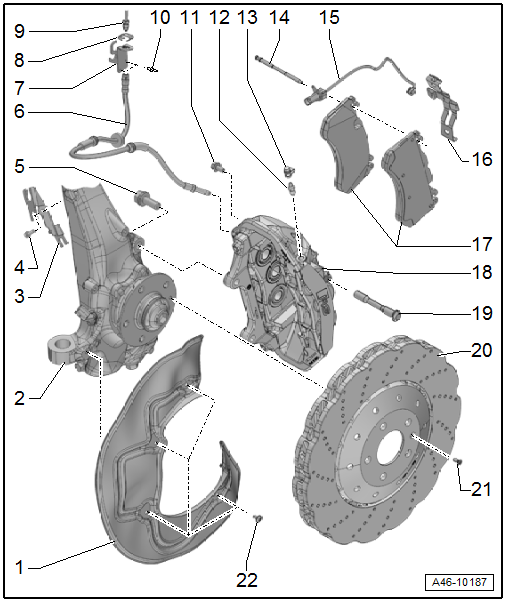

Overview - Front Brakes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Cover Plate
- Stub Axle Carrier
- Bracket
- For brake hose and electrical wire
- Bolt
- 9 Nm
- Bolt
- 196 Nm
- With a washer
- Quantity: 2
- Replace after removing
- Brake Hose
- Make sure the brake hose is routed correctly. Make sure the brake hose is not blocked, bent or rubbing against the vehicle.
- Replace if damaged.
- Make sure that lugs are properly seated in grooves in bracket.
- Tightening specification, brake hose to brake caliper, 20 Nm
- Bracket
- For brake hose
- Spring
- Replace if damaged.
- Brake Line
- Tightening specification, brake line to brake hose, 14 Nm
- Rivet
- Quantity: 2
- Bolt
- 30 Nm
- For the tension strut
- Replace after removing
- Bleed Screw
- 13 Nm
- Protective Cap
- Brake Pad Pins
- Quantity: 2
- Replace when pads are replaced.
- Note the installation position
- Drive out from the outside toward the inside
- Brake Pad Wear Sensor
- Left Front Brake Pad Wear Sensor -G34- /Right Front Brake Pad Wear Sensor -G35-
- For inner brake pad
- Replace if damaged.
- Cannot be removed without damaging it
- Refer to BRAKE PAD WEAR SENSOR, REMOVING AND INSTALLING
- Brake Pad Spring
- Note the installed position. Refer to Fig 3.
- Replace when pads are replaced.
- Make sure then fits correctly inside the brake caliper
- Brake Pads
- Check the brake pad thickness. Refer to => 411.
- Always replace on both axles.
- Allocation.
- Refer to FRONT BRAKE PADS, REMOVING AND INSTALLING
- Note installed position: inner brake pad with brake pad wear sensor mount
- Brake Caliper
- Do not loosen the brake caliper bolted connections. Refer toFig 2.
- Allocation.
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING
- Refer to BRAKE CALIPER, REPLACING
- Refer to BRAKE CALIPER, SERVICING, THREE-PISTON BRAKENOTE: Pay attention to the comments. Refer toFig 2.NOTE: Depending on the model there are two dampers installed in each front brake caliper. Refer to BRAKE CALIPER BALANCE WEIGHT .
- Tension Strut
- Replace when pads are replaced.
- Secure with the bolt -item 11-.
- Brake Rotor
- For the correct wear limit. Refer to FRONT BRAKES .
- Allocation.
- Always replace on both axles.
- Refer to BRAKE ROTOR, REMOVING AND INSTALLING
- Bolt
- 10 Nm
- Bolt
- 10 Nm
- Quantity: 4
WARNING:
There is a risk of malfunction. Do not loosen the bolts -arrows-.
- The "arrow" points in the direction of forward wheel rotation.
