Overview - Front Brakes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

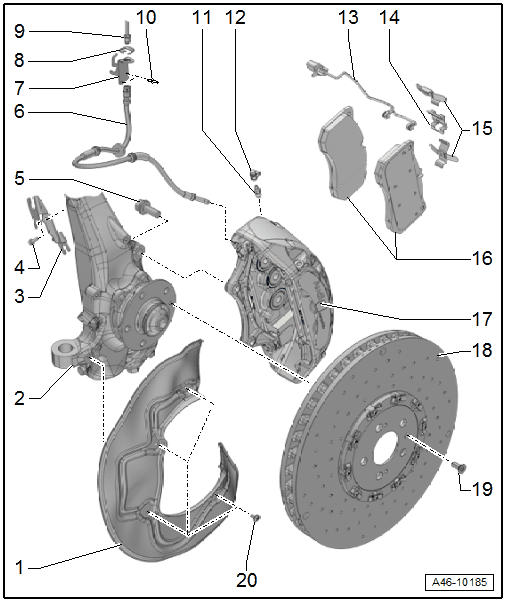

Fig 1: Identifying Front Brake Overview

Courtesy of AUDI OF AMERICA, LLC

Cover Plate
- Refer to FRONT COVER PLATE, REMOVING AND INSTALLING
Stub Axle Carrier
Bracket
- For brake hose and electrical wire
Bolt
- 9 Nm
Bolt
- 196 Nm
- With a washer
- Quantity: 2
- Replace after removing
Brake Hose
- Make sure the brake hose is routed correctly. Make sure the brake hose is not blocked, bent or rubbing against the vehicle.
- Replace if damaged.
- Make sure that lugs are properly seated in grooves in bracket.
- Tightening specification, brake hose to brake caliper, 20 Nm
Bracket
- For brake hose
Spring
- Replace if damaged.
Brake Line
- Tightening specification, brake line to brake hose, 14 Nm
Rivet
- Quantity: 2
Bleed Screw
- 13 Nm
Protective Cap
Brake Pad Wear Sensor
- Left Front Brake Pad Wear Sensor -G34- /Right Front Brake Pad Wear Sensor -G35-
- Replace if damaged.
- Cannot be removed without damaging it
- Refer to BRAKE PAD WEAR SENSOR, REMOVING AND INSTALLING
Bracket
- For brake pad wear sensor electrical wire
- Replace if damaged.
- make sure then fits correctly inside the brake caliper
Brake Pad Springs
- Note the installation position
- Replace when pads are replaced.
- make sure then fits correctly inside the brake caliper
Brake Pads
- Check the brake pad thickness. Refer to => 411.
- Always replace on both axles.
- Allocation.
- Refer to FRONT BRAKE PADS, REMOVING AND INSTALLING
- Note the installation position
Brake Caliper
- Tighten the guide pin to 21 to 26 Nm. Refer toFig 2.
- Do not loosen the brake caliper bolted connections. Refer toFig 2.
- Allocation.
- Refer to BRAKE CALIPER, REMOVING AND INSTALLING
- Refer to BRAKE CALIPER, REPLACING
- Refer to BRAKE CALIPER, SERVICING, THREE-PISTON BRAKE
  NOTE: Pay attention to the comments. Refer toFig 2.

  NOTE: Depending on the model there are two dampers installed in each front brake caliper. Refer to BRAKE CALIPER BALANCE WEIGHT .
Brake Rotor
- Ceramic Brake Rotor, evaluating. Refer to CERAMIC BRAKE ROTOR, EVALUATING .
- Ceramic Brake Rotor, determining wear. Refer to CERAMIC BRAKE ROTOR, DETERMINING WEAR .
- Allocation.
- Always replace on both axles.
- Refer to FRONT BRAKE ROTOR, REMOVING AND INSTALLING
- Make note of the direction of travel
Bolt
- 10 Nm
Bolt
- 10 Nm
- Quantity: 4

Fig 2: Do Not Loosen The Bolted Connections

Courtesy of AUDI OF AMERICA, LLC

Tighten the guide pins -B arrows- to 21 Nm to 26 Nm.

WARNING:

There is a risk of malfunction.

Do not loosen the bolted connections -A arrows-
Tighten the guide pins -B arrows- to 21 Nm to 26 Nm.
