Parking Brake, Mechanically Releasing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

In individual cases the parking brake must be mechanically released.

Proceed as follows:

CAUTION: When mechanically loosening the parking brake, secure the vehicle from rolling.

-- Disconnect the connector from the motor.

-- Remove the connector from the retainer.

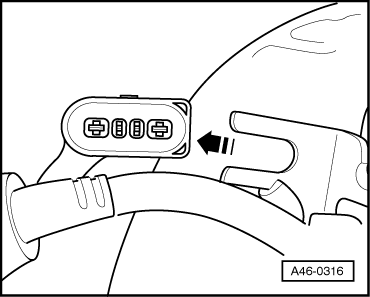

Fig 1: Removing Connector (Actuator Side) From Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Remove both bolts form the motor.

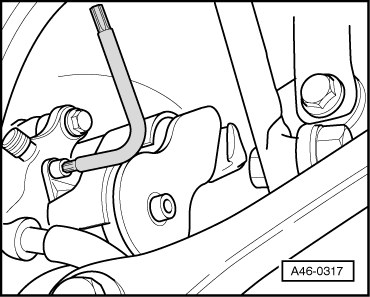

Fig 2: Removing Both Actuator Securing Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the motor.

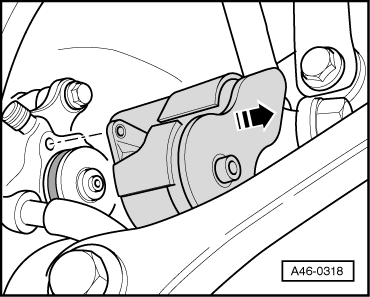

Fig 3: Removing Actuator

Courtesy of AUDI OF AMERICA, LLC

CAUTION: When mechanically loosening the parking brake, secure the vehicle from rolling.

-- To loosen the brake turn the adjusting bolt on the parking brake motor with a tool -1-.

Fig 4: Positioning Actuator

Courtesy of AUDI OF AMERICA, LLC

NOTE: Repeat the procedure on the other side, so that the rear brakes are loosened.

CAUTION: When mechanically loosening the parking brake, secure the vehicle from rolling.
