Left Parking Brake Motor -V282- /Right Parking Brake Motor -V283-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Ignition on
Release parking brake
Coding check and reported if necessary.
DTC memory checked, malfunctions corrected and DTC memory erased.
Ignition off
-- Raise the vehicle.
-- Remove the wheels.
NOTE:
Ignition must be switched off for at least 30 seconds when disconnecting connector!
Clean entire area around connector and actuator/brake caliper.

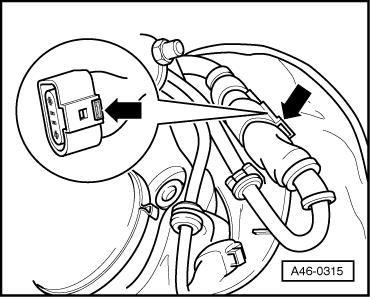

-- Disconnect the connector from the motor.
-- Remove the connector from the retainer.
-- Remove both bolts form the motor.
-- Remove the motor.
-- Remove sealing ring with a suitable tool.
NOTE:
Be careful not to damage the groove on the seal and the contact surface on the motor.
NOTE:
Do not use any tools with sharp edges.
-- Clean ring groove and contact surfaces if dirty. Only use brake cleaner
