Left Parking Brake Motor -V282- /Right Parking Brake Motor -V283-, REMOVING AND INSTALLING: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Install new seal.

Fig 1: Positioning Actuator

GWWA46-0324

Courtesy of AUDI OF AMERICA, LLC

-- Turn the adjusting screw in the brake caliper back a little to make it easier to install the motor.

NOTE: This makes it easier to install the actuator.

-- -1- mount the motor as shown.

Fig 2: Actuator Position

GWWA46-0320

Courtesy of AUDI OF AMERICA, LLC

NOTE: Make sure that the seal is seated correctly

-- Turn the motor -2- so that the hole for the bolt -a- and the thread in the brake caliper housing -b- are covered.

Fig 3: Actuator Position

GWWA46-0320

Courtesy of AUDI OF AMERICA, LLC

NOTE: Make sure the motor is seated flush against the brake housing.

Install the bolts a few turns by hand. If threads are damaged, entire brake caliper must be replaced!

-- Tighten the motor bolts to 12 Nm.

Fig 4: Ensuring Parking Brake Actuator Is Seated Flush Against Brake Housing

GWWA46-0321

Courtesy of AUDI OF AMERICA, LLC

-- Install the connector for the motor into the retainer.

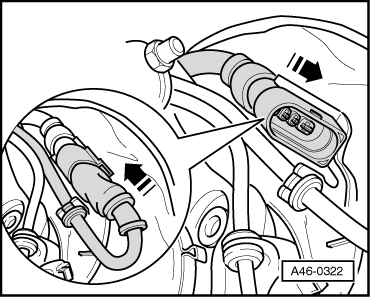

Fig 5: Sliding Actuator Connector Into Bracket

GWWA46-0322

Courtesy of AUDI OF AMERICA, LLC

NOTE: Only insert connector by hand to avoid damaging it.

-- Connect the connector to the motor.

-- Install the wheels. Refer to the Wheel and Tire Guide.

-- Connect the Vehicle Diagnostic Tester to the vehicle data link connector with the ignition switched off.

NOTE:

Switch the ignition on.

The parking brake is released.

Coding check and reported if necessary.

DTC memory interrogated, errors shown corrected and DTC memory erased.

-- Start the program in Guided Functions.

CAUTION: Make sure the brakes are working correctly before driving the vehicle.
