Bracket, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Install the accelerator pedal module, 8 Nm.

-- Install the brake pedal in the pedal bracket.

-- Remove the bolt -5- through the brake pedal -2- and bracket -4-.

Fig 1: Brake Pedal, Removing And Installing Overview

Courtesy of AUDI OF AMERICA, LLC

-- Install both clips -1- on the bolt.

NOTE:

Make sure the left and right clips -1- fit securely inside the groove on the bolt.

Fig 2: Brake Pedal, Removing And Installing Overview

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolt -3- and tighten to 8 Nm.

-- Install the pedal bracket, with the brake pedal installed, and the accelerator pedal module.

-- The pedal bracket must fit into the guides in the wall.

NOTE: First install the bolts from the brake booster to the mounting bracket and tighten them.

Install the tighten the bolts -8- for the brake booster bracket.

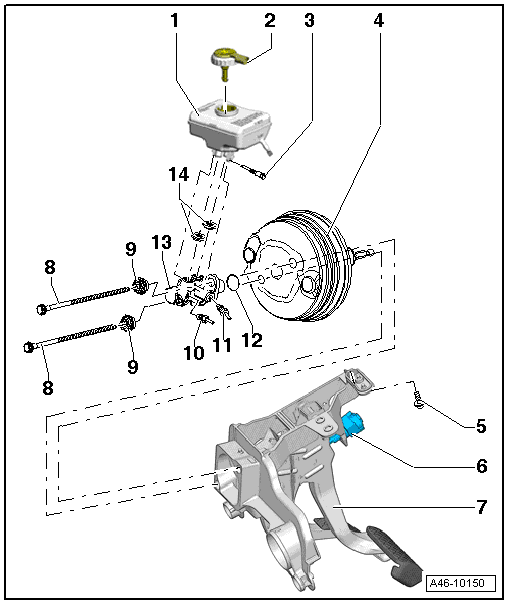

Fig 3: Overview Of Brake Booster/Master Brake Cylinder

Courtesy of AUDI OF AMERICA, LLC

-- Connect the connectors to the engine control module.

-- Install the tower brace -1- with the bolts -2 through 4-.

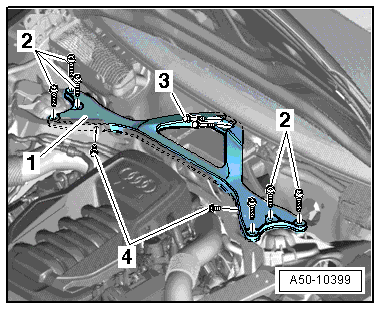

Fig 4: Identifying Tower Brace And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install the plenum chamber cover. Refer to Body Front .

-- Install the tighten the nuts -15- to 8 Nm.

Fig 5: Identifying Mounting Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Install the steering column. Refer to Steering .

-- Connect the connector to the accelerator pedal module -6-.

Clip the brake pedal to the brake booster.

-- Hold the ball head of push rod in front of the mount and push the brake pedal in direction of brake booster, so the ball head locates audibly.

-- Install the Brake Lamp Switch -F-. Refer to Brake Lamp Switch -F-, REMOVING AND INSTALLING .

-- Install the footwell vent.

-- Install the storage compartment under the instrument panel on the driver side. Refer to Interior Equipment .

Check the function of the Brake Lamp Switch -F- after installing it and before driving the vehicle.

CAUTION: Make sure the brakes are working correctly before driving the vehicle.
