OVERVIEW - Brake System Vacuum Pump -V192-

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

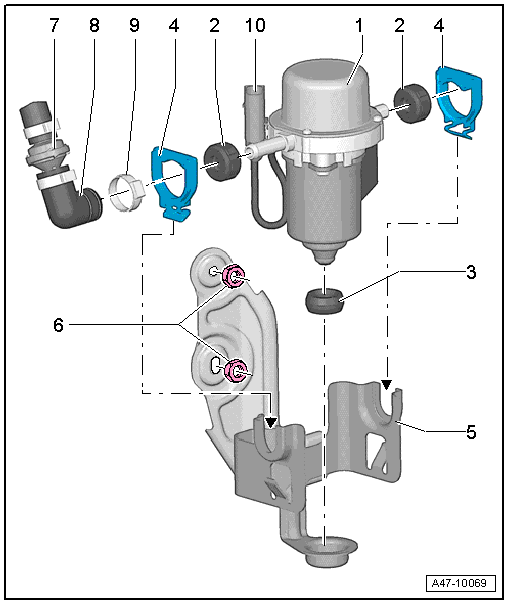

Fig 1: Overview Of Brake System Vacuum Pump -V192-

Courtesy of AUDI OF AMERICA, LLC

Brake System Vacuum Pump -V192-
Stop Buffer
Stop Buffer
Clip
Bracket
Nut
- 9 Nm
Check Valve
- Checking. Refer to CHECK VALVE, CHECKING .
Clamp
- Replace
Vacuum hose connection
Electric connection

NOTE:

Brake booster pressure sensor -1- is installed inside the plenum chamber.

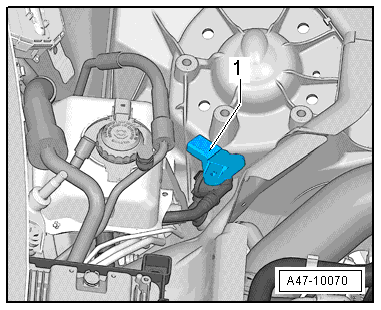

Fig 2: Brake Booster Pressure Sensor -G294- Component Location

Courtesy of AUDI OF AMERICA, LLC
