Adjusting using the End Plate

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear lid end trim panel. Refer to Luggage Compartment Trim Panels .

NOTE:

Before adjusting, install the adjusting buffer on the rear lid side completely. Refer to Figure.

The rear height can be adjusted by sliding the end plate -2-.

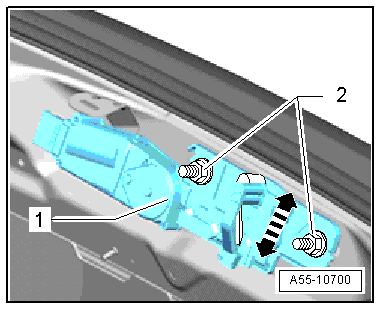

Fig 1: Identifying Rear Adjusting Buffer & Nuts

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the nuts -2- hand-tight.

-- Close the rear lid and check the position.

-- The rear lid lock must be engaged in the main detent (2nd lug) during this.

-- Open the rear lid -1- and adjust the end plate if necessary.

-- Tighten the nuts to the tightening specification, refer to -item 7-.

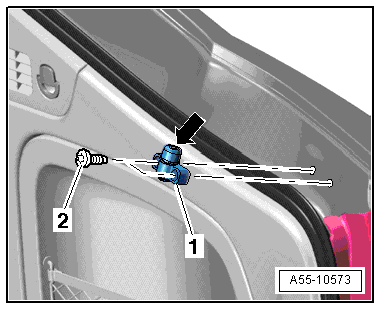

Fig 2: Identifying Adjusting Buffer

Courtesy of AUDI OF AMERICA, LLC

-- Turn adjusting buffer -arrow- until closed rear lid with stop buffer on rear lid side makes contact with stop.

-- Check whether rear lid still closes easily, repeat adjustment at adjusting buffer if necessary.

-- If rear lid is difficult to close, tighten the adjusting buffer slightly.
