Adjusting Buffer, Adjusting

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

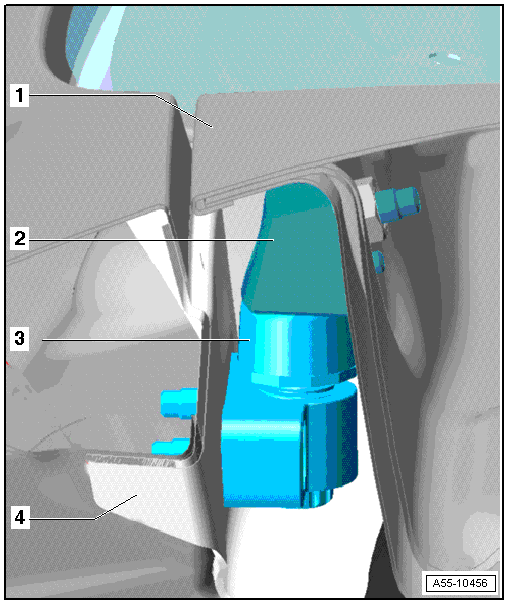

Fig 1: Adjustment Buffer Installation Position

Courtesy of AUDI OF AMERICA, LLC

Rear Lid
- When adjusted correctly, adjusting buffer -3- must contact stop buffer -2- with light pretension when rear lid is closed.
Stop, Rear Lid Side
- Installation, refer to Fig 3
- Tighten screws to 8 Nm when installing.
Adjustment Buffer, Body Side
- Adjustment buffer secured on body-side with bolts
- Tighten screws to 8 Nm when installing.
- There is an adjusting screw for adjusting the height.
- When rear lid is adjusted correctly, adjusting buffer must make contact with light pre-tension with stop on rear lid side.
Side Panel

Fig 2: Identifying Adjustment Screw/Buffer And Protective Cap

Courtesy of AUDI OF AMERICA, LLC

-- Before adjusting rear lid, install adjusting screw -2- with protective cap -1- completely in adjusting buffer -3-

-- Loosen the adjusting screw -2- just enough until the cap -1- makes contact with light pre-tension with the stop on the rear lid side when the rear lid is closed.

-- Check whether lid sits without play and in flush position by pushing or pulling on the side edge of rear lid below rear window.

-- Repeat the adjustment if necessary.

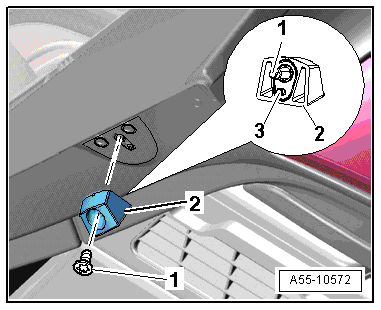

Fig 3: Identifying Rear Lid Side

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the -2- bolt -1- to the tightening specification when installing the stop, refer to -item 6-.

-- Height adjustment is carried out using adjusting buffer on body side.
