Rear Lid Seal, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

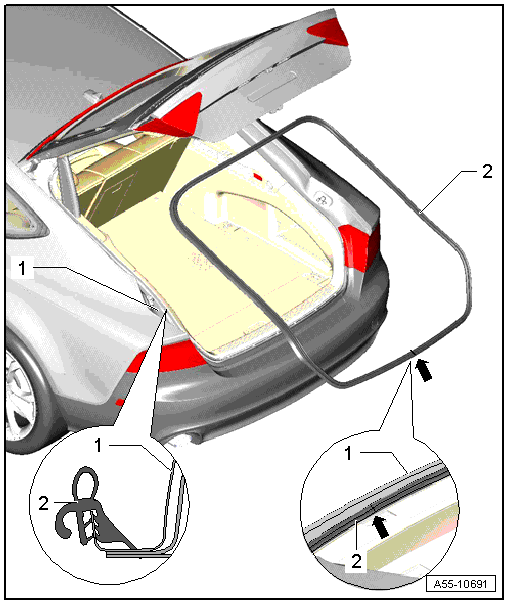

Fig 1: Identifying Rear Lid Seal

Courtesy of AUDI OF AMERICA, LLC

Rear Lid
Rear Lid Seal
Removing

-- Remove the wiring harness from the rear lid.

-- Remove the coupling rod cover. Refer to COUPLING ROD COVER, REMOVING AND INSTALLING .

-- Disengage the upper push rod from the rear lid, refer to Coupling Rod, Removing .

-- Remove the seal from the body flange and over the coupling rod and remove the wiring harness.

-- Do the same on the opposite side of the rear lid.

Install in reverse sequence.
- When installing, align the seal with the joint -arrow- with the marking in the center of the vehicle.
- Beginning at the seam, press the seal all around onto the body flange.
