Rear Lid Latch Emergency Release

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

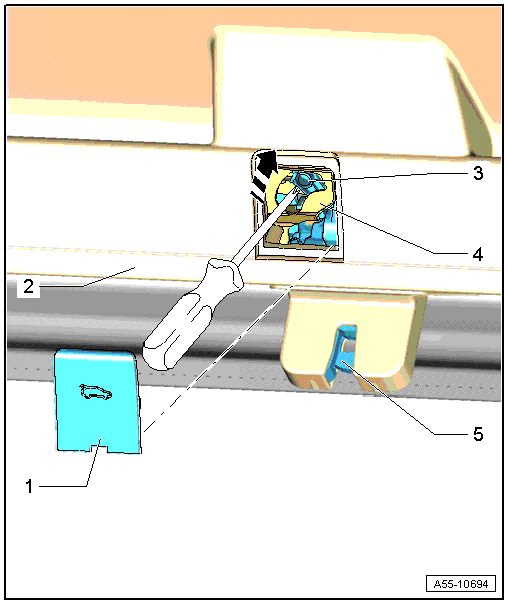

Fig 1: Identifying Rear Lid Latch Emergency Release
GWWA55-10694Courtesy of AUDI OF AMERICA, LLC
  1. Rear Lid Trim Panel Cover
    • Pry out
  2. Rear Lid Trim Panel
  3. Rear Lid Latch Release Lever
  4. Cover for Lid Lock
  5. Lid Latch

    -- For an emergency unlocking, insert a screwdriver through the rear lid latch cover and push the release lever upward.
