Replacing The Rear Lid Hinge Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

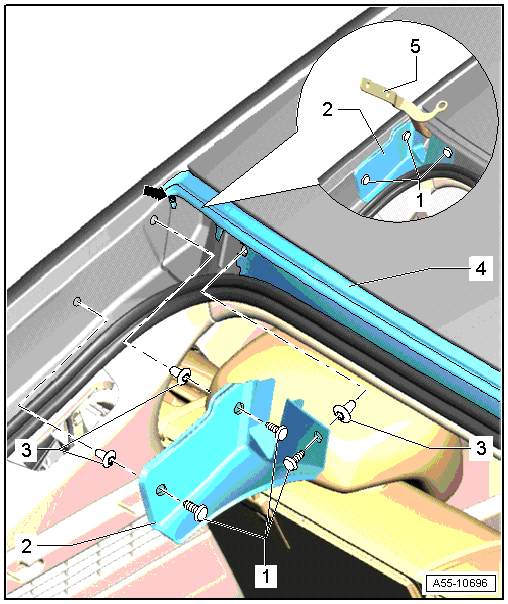

Fig 1: Identifying Clip, Hinge Cover, Grommet, Cover And Lid Hinge

Courtesy of AUDI OF AMERICA, LLC

Clip
Hinge Cover
- Self-adhesive
  NOTE:
  Make sure there is no dust or grease on the hinge cover adhesive surface.

  Peel the protective film off the tape after installing the hinge cover.
- Removing
  -- Remove the clip and the rear hinge cover.
- Installing
  -- Install the hinge cover into the side wall frames. While doing this, the pins -arrow- on the cover -4- must fit into the eyes in the hinge cover.

  -- Push the hinge cover upward over the right tab next to the rear lid hinge.

  -- Push the side clips into the roof frame.

  -- Peel off the protective film between the roof frame and the hinge cover.

  -- Press the hinge cover on the roof frame using force.
Grommet
- Press into the side wall frame and roof frame.
Cover
- Self-adhesive
Lid Hinge
