Gas-Filled Strut, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The gas-filled strut is under great pressure. It should be disposed of by qualified personnel only. Refer to GAS-FILLED STRUT, DISPOSING .

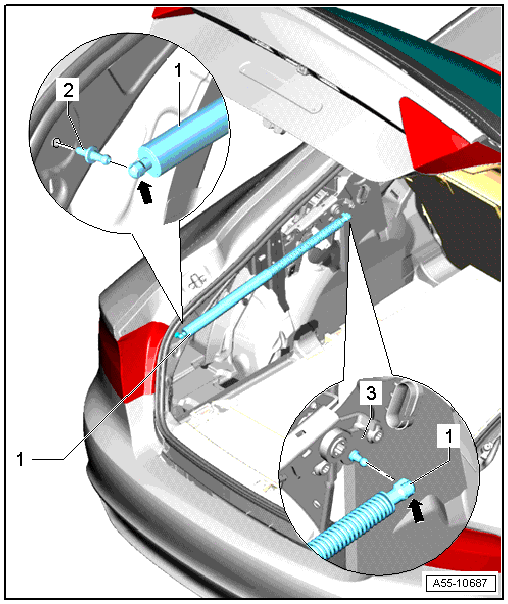

Fig 1: Identifying Gas-Filled Strut, Ball Pin And Bracket

Courtesy of AUDI OF AMERICA, LLC

Gas-Filled Strut
- Removing
  -- Remove the side trim panel. Refer to Luggage Compartment Trim Panels .

  -- Disengage the locking spring -arrows- at the ball sockets and remove the gas-filled strut from the ball pin.
- Installing
  CAUTION: Replace the locking springs after removing the gas-filled strut.

  -- The gas-filled strut may only be installed at the ball sockets onto the ball pins, refer to Gas-Filled Strut, Installing .
Ball Pin
- 21 Nm
Ball Pin Bracket
