Remove the Protective Sleeve

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

-- Clamp the gas-filled strut in the vise.

-- Use the Window Cutter VAG 1561A and Window Cutter - Saw Blade - 83 mm VAG 1561/26 to cut open the protective sleeve -1- length wise.

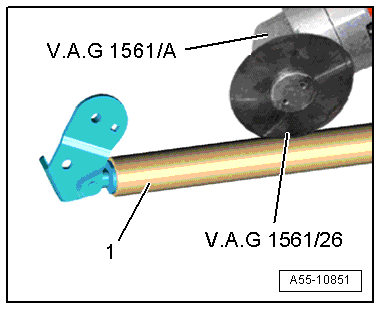

Fig 1: Identifying Protective Sleeve
GWWA55-10851Courtesy of AUDI OF AMERICA, LLC

-- Cut the end of the protective sleeve free along the circumference.

-- Fold the protective sleeve upward and remove.
