Gas-Filled Strut
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

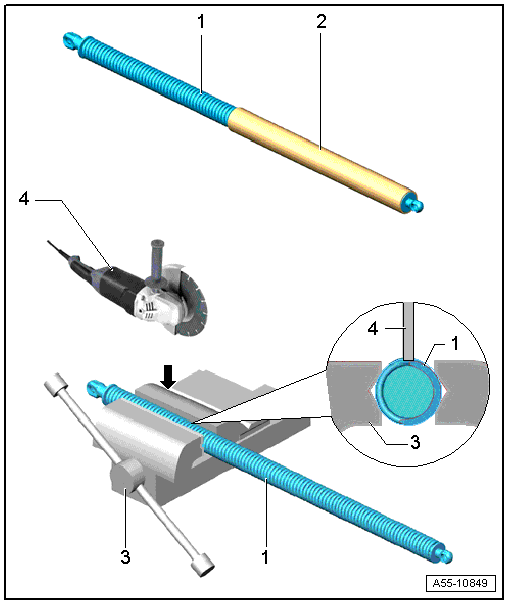

- Gas-Filled Strut
- Remove the protective sleeve.
- Protective Sleeve
-- Use the Window Cutter VAG1561A and Window Cutter - Saw Blade - 83 mm VAG 1561/26 to cut and remove.
- Prismatic Jaw ViseWARNING: The pressure spring should be inserted into a prismatic jaw vise before being cut through with a Single Hand Angle Grinder VAS 5167 as shown in the magnified section of the graphic.
-- Use a Single Hand Angle Grinder VAS 5167 with a partition window to cut through the compression spring in at least 3 places lengthwise.
-- Turn the spring coils clockwise and inward after each separating cut.
-- Turn all of the spring coils inward, until the total tension has been reduced to zero.
-- The gas-filled strut may now be disposed of.
- Angle Sander
- Clamp the separation cut in the single hand angle grinder.
