Rear Lid Drive Coupling Rod, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

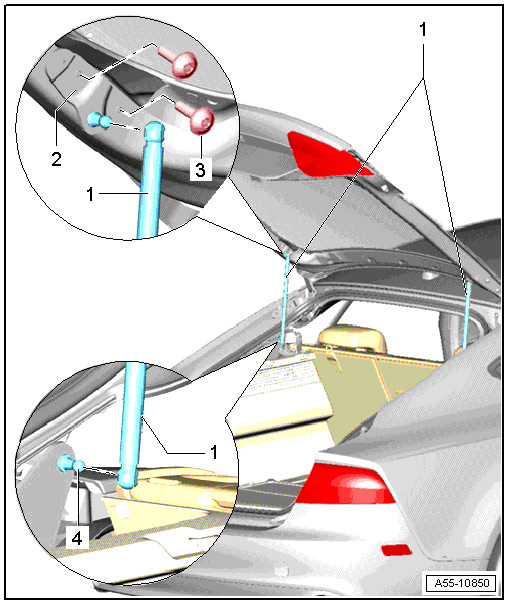

Fig 1: Identifying Coupling Rod, Ball Pin Bracket, Screw And Ball Pin
GWWA55-10850Courtesy of AUDI OF AMERICA, LLC
  1. Coupling Rod
    CAUTION: To prevent personal injuries or damaging the rear lid and/or the vehicle body, place a support under the rear lid to keep it from falling down.

    -- Disengage Coupling Rod, Removing

  2. Ball Pin Bracket

    -- To remove, remove the coupling rod, the bolts -3- and the bracket.

  3. Screw
    • 8 Nm
  4. Ball Pin
    • No replacement part.
    • Can only be replaced with the rear lid drive tilting mechanism.
