Rear Lid Control Module -J605-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

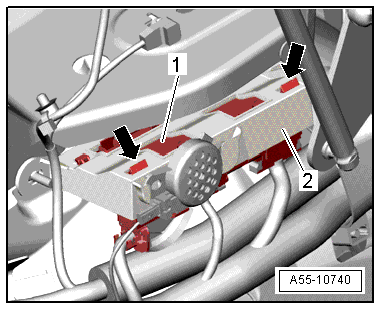

Fig 1: Identifying Locking Mechanisms, Rear Lid Control Module And Bracket
GWWA55-10740Courtesy of AUDI OF AMERICA, LLC

-- Loosen the right side trim panel and disconnect the connectors.

-- Open the locking mechanisms -arrows- and remove the Rear Lid Control Module -J605- -1- downward from the bracket -2-.
