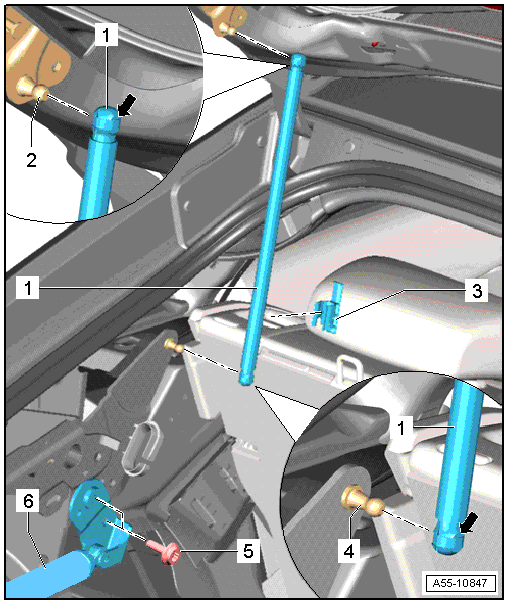

Motor With Spindle Drive, Removing And Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Coupling Rod
- Removing and installing. Refer to REAR LID DRIVE COUPLING ROD, REMOVING AND INSTALLING .
- Ball Pin Bracket
- Clip
- Must be slid on to secure.
- Ball Pin
- No replacement part.
- Can only be replaced with the rear lid drive tilting mechanism.
- Rear Lid Motor 2 -V445-
- Removing and installing. Refer to Rear Lid Motor 1 -V444- AND Rear Lid Motor 2 -V445-, REMOVING AND INSTALLING .
- Bolt
- 21 Nm
