Coupling Rod Cover, Removing And Installing: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

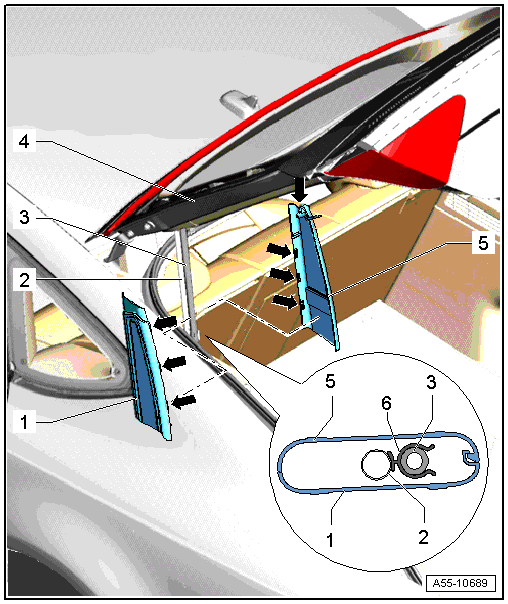

- Outer Cover
-- Remove the rear lid upper trim panel.
-- Unclip the cover from the coupling rod toward the center of the vehicle. Refer to -item 2-.
-- Slide the outer and inner sections of the cover against each other -arrows- and unclip them.
-- Remove the inner and outer sections of the cover from the side trim panel.
- Coupling Rod
- Wire
- Push the wire all the way into the clip when installing.
- Rear Lid
- Inner Cover
- Clip
