Inner Cover, Unclipping from Coupling Rod

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

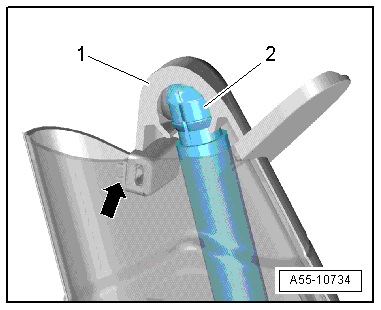

Fig 1: Identifying Coupling Rod
GWWA55-10734Courtesy of AUDI OF AMERICA, LLC

-- Unclip the upper trim -1- -arrow- and then remove it from the coupling rod -2-.
