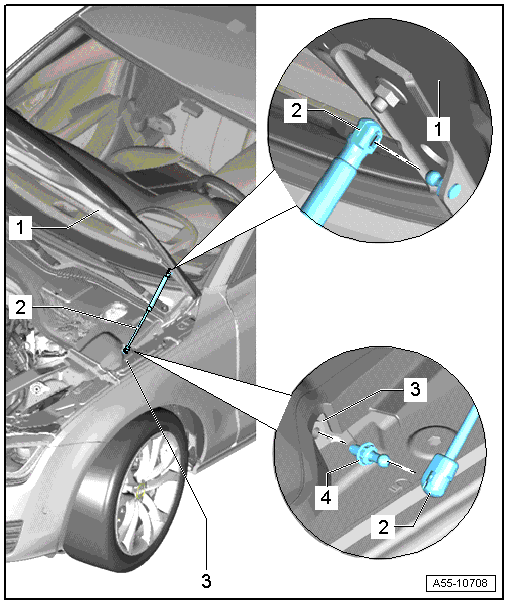

Overview - Hood, Gas-Filled Strut
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Gas-Filled Strut
- Removing and installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Releasing the gas. Refer to GAS-FILLED STRUT, RELEASING GAS .NOTE: Ensure correct positioning during installation: the gas-filled strut tube must be attached on the lid side.
- Hood
- Suspension Strut Tower
- Ball Pin
- 21 Nm
