Hood Seal, Removing And Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

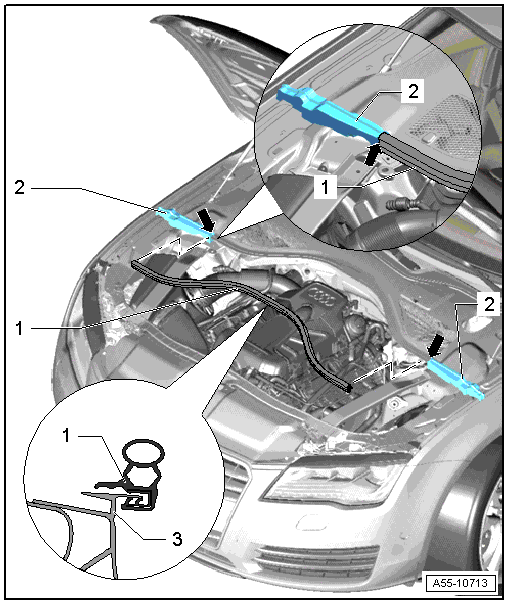

- Gasket for Plenum Chamber
- To remove, pull forward off the body flange.
- Mount the seal on the foam piece and then push it onto the flange on the body.
- Mount the seal on the opposite side on the foam piece and push it onto the flange on the body.
- Press the seal on the opposite side on the flange on the body using up any overlap.
- Right Sealing Profile
- To remove, unclip it from the fender flange and the suspension strut tower.
- Press the clips on the foam piece into the body when installing.
- Plenum Chamber Bulkhead
- Slide the plenum chamber seal on at the sides.
