Hood Impact Guard, Replacing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The impact guard is also equipped with double-sided adhesive tape.

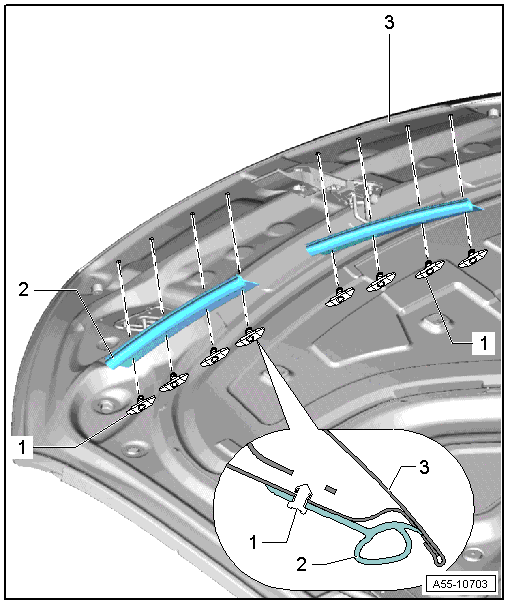

Fig 1: Identifying Clip, Impact Guard And Door
GWWA55-10703Courtesy of AUDI OF AMERICA, LLC
  1. Clip
  2. Impact Guard
    • To remove, remove the clip from the hood and then remove the impact guard.
  3. Door
