Hinges, Removing And Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

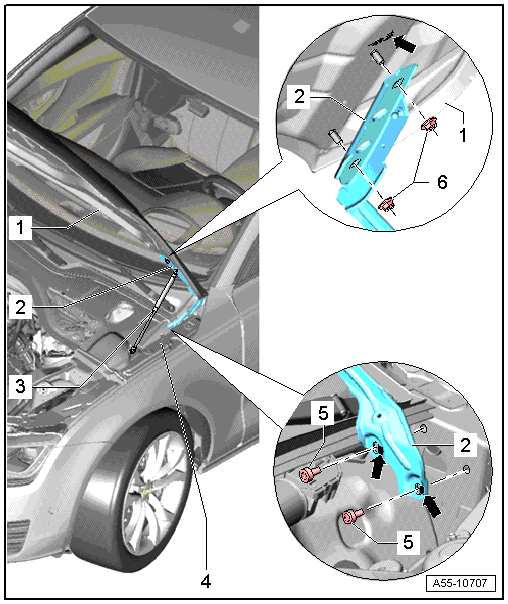

- Hood
- Hood Hinge
- Removing
-- Before removing a hood hinge, support the hood or secure it against falling.
-- Remove the gas-filled strut. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
-- Remove the bolts -5- and nuts -6-.
- Installing
-- Align with the markings -arrows- in reverse order.
- Removing
- Gas-Filled Strut
- Fender Flange
- Bolt
- 21 Nm
- Nut
- 21 Nm
