Catch, Removing And Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

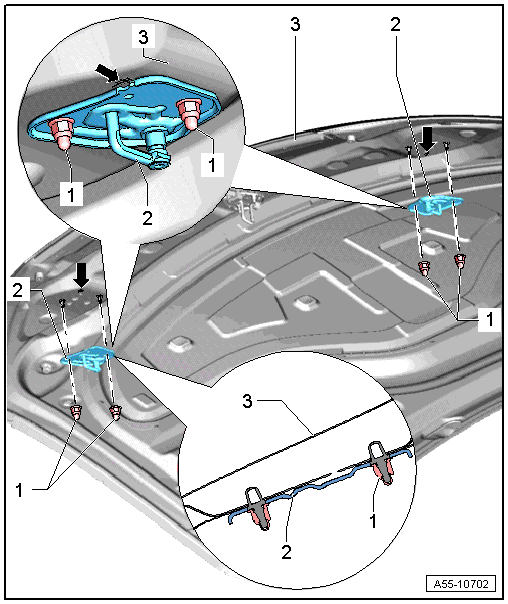

Fig 1: Identifying Nut, Catch And Hood
GWWA55-10702Courtesy of AUDI OF AMERICA, LLC
  1. Nut
  2. Catch
    • Removing

      -- Remove the screws and the striker pin.

    • Installing

      -- Align the hood catch with the markings on the hood -arrows- and then tighten the bolts.

  3. Hood
