Trailer Hitch Socket, Removing And Installing - Version 3: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Trailer Hitch Wiring Socket Components

Courtesy of AUDI OF AMERICA, LLC

-- Fold out the trailer hitch, refer to the vehicle Owner's Manual.

-- Switch off the ignition and remove the ignition key.

-- Remove the bolts -arrows-.

-- Remove the socket from the retaining plate.

-- Remove the rubber cover from the socket.

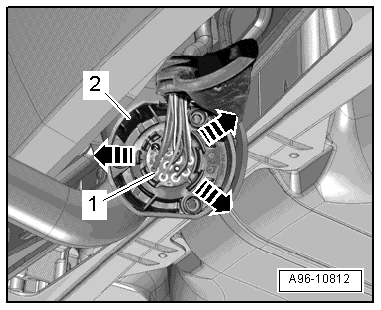

-- Release the retaining clips -arrows- and press multiple connector -1- out of socket -2-.

Fig 2: Releasing Retaining Clips To Press Multiple Connector Out Of Socket

Courtesy of AUDI OF AMERICA, LLC

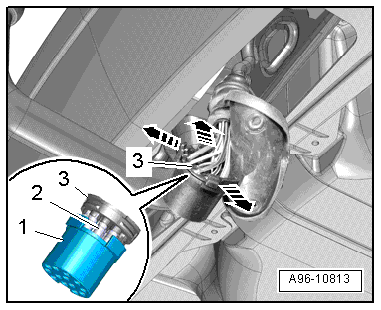

-- Release the retaining clips -arrows- and remove retainer -2- from multiple connector -3-.

Fig 3: Releasing Retaining Clips To Remove Retainer From Multiple Connector

Courtesy of AUDI OF AMERICA, LLC

NOTE: Carefully remove the retainer so that contacts -2- of the multiple connector are not disconnected from the wiring harness.
