Trailer Hitch Socket, Removing And Installing - Version 2: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.

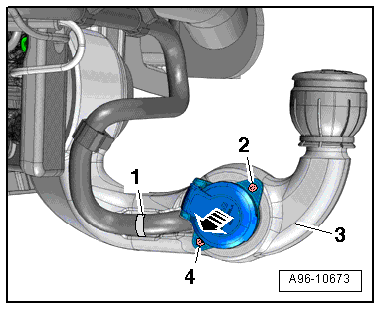

Fig 1: Identifying Cable Tie, Screws And Trailer Hitch

GWWA96-10673

Courtesy of AUDI OF AMERICA, LLC

NOTE: During installation, install the cable ties at the same location.

-- Turn off the ignition and remove the key.

-- Unfold and engage the trailer hitch.

-- Cut the cable tie -1- and remove the screws -2 and 4-.

-- Press the socket out of trailer hitch -3- in direction of -arrow-.

-- Turn cap -1- counterclockwise -arrow- and remove it from socket -3-.

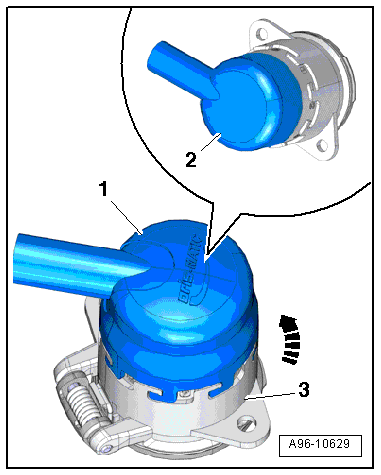

Fig 2: Turning Cap Counterclockwise To Remove It From Socket

GWWA96-10629

Courtesy of AUDI OF AMERICA, LLC

-- Remove rubber cover -2-.

-- Release the retaining clips -arrows- and press multiple connector -2- out of socket -1-.

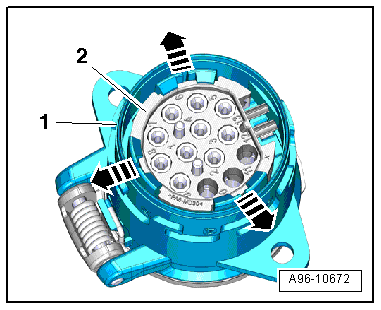

Fig 3: Releasing Retaining Clips To Press Multiple Connector Out Of Socket

GWWA96-10672

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining clips -arrows- and remove retainer -1- from multiple connector -3-.

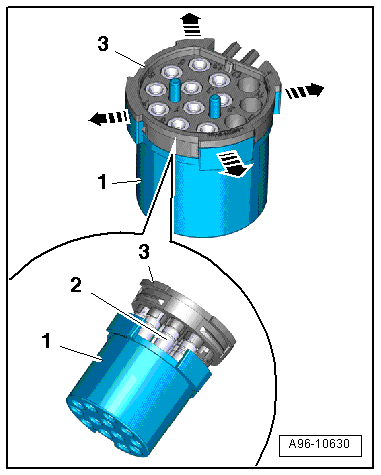

Fig 4: Releasing Retaining Clips To Remove Retainer From Multiple Connector

GWWA96-10630

Courtesy of AUDI OF AMERICA, LLC

NOTE: Carefully remove the retainer so that contacts -2- of the multiple connector are not disconnected from the wiring harness.
