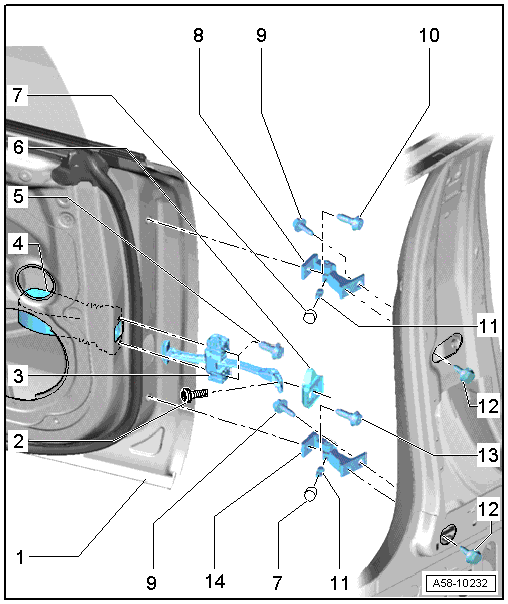

Overview - Door
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
- Front Door
- Bolt
- 8 Nm
- Door Arrester
- Removing and installing. Refer to DOOR ARRESTER, REMOVING AND INSTALLING .
- Cap
- For the door arrester
- Bolt
- 33 Nm
- Seal
- For the door arrester
- Cap
- Place on the stud bolt
- Upper Door Hinge
- Bolt
- 34 Nm
- BoltNOTE:
The bolt is a fitting bolt so it is generally not necessary to adjust the door using it.
If it is necessary to make an adjustment using these bolts, the bolt can be replaced with one of the same length and strength category.
- 34 Nm
- Stud Bolt
- 23 Nm
- Bolt
- 34 Nm
- Bolt
- 34 Nm
- Lower Door Hinge
