Window Shaft Strip, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 Audi S7, 2015 Audi RS 7, 2015 Audi A7 Quattro, 2014 Audi S7, and 2014 Audi RS 7. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:

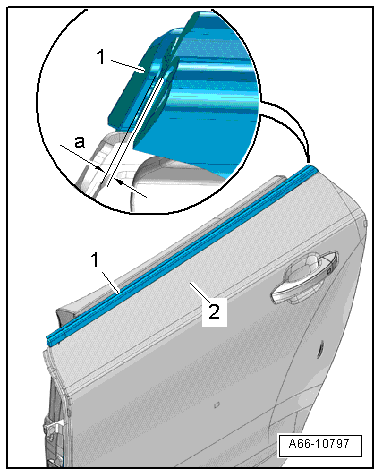

-- Position the front window shaft strip -1- on the door flange -2- as shown.
- Flush with the outer edge, dimension -a- = 0 to 0.5 mm.
NOTE:
When installing, the lower edge of the window shaft strip can be coated with tire mounting paste.

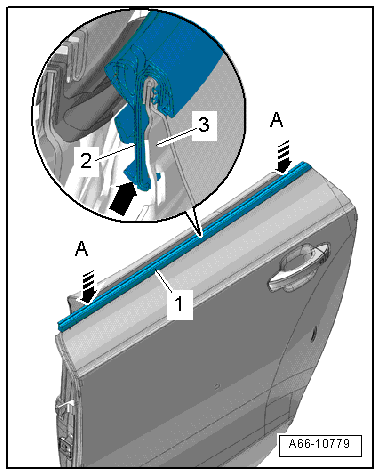

-- Press the window shaft strip -1- evenly -arrows A- so that the strip -2- audibly engages.
- The retaining strip must fit -arrow- under the retaining plate -3-.
